Premium All-Platform · COB+SMD+GOB · Front Service
Premium All-Platform · COB+SMD+GOB · Front Service
X Series is the premium all-platform LED display supporting COB, SMD, and GOB technologies in one cabinet system. 500×500mm/250mm/1000×500mm cabinet sizes with P1.25-P3.91. Front maintenance with front or rear installation. Perfectly matches diverse client needs in shopping malls, showrooms, retail, and airports.

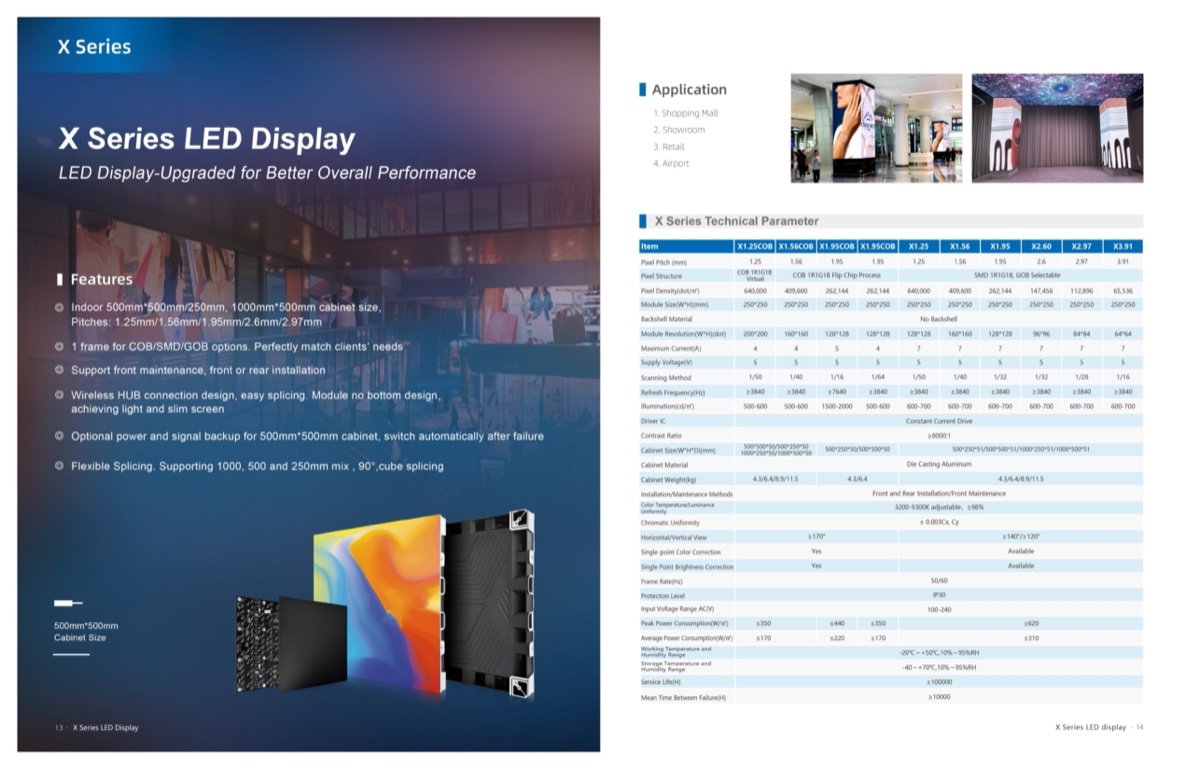

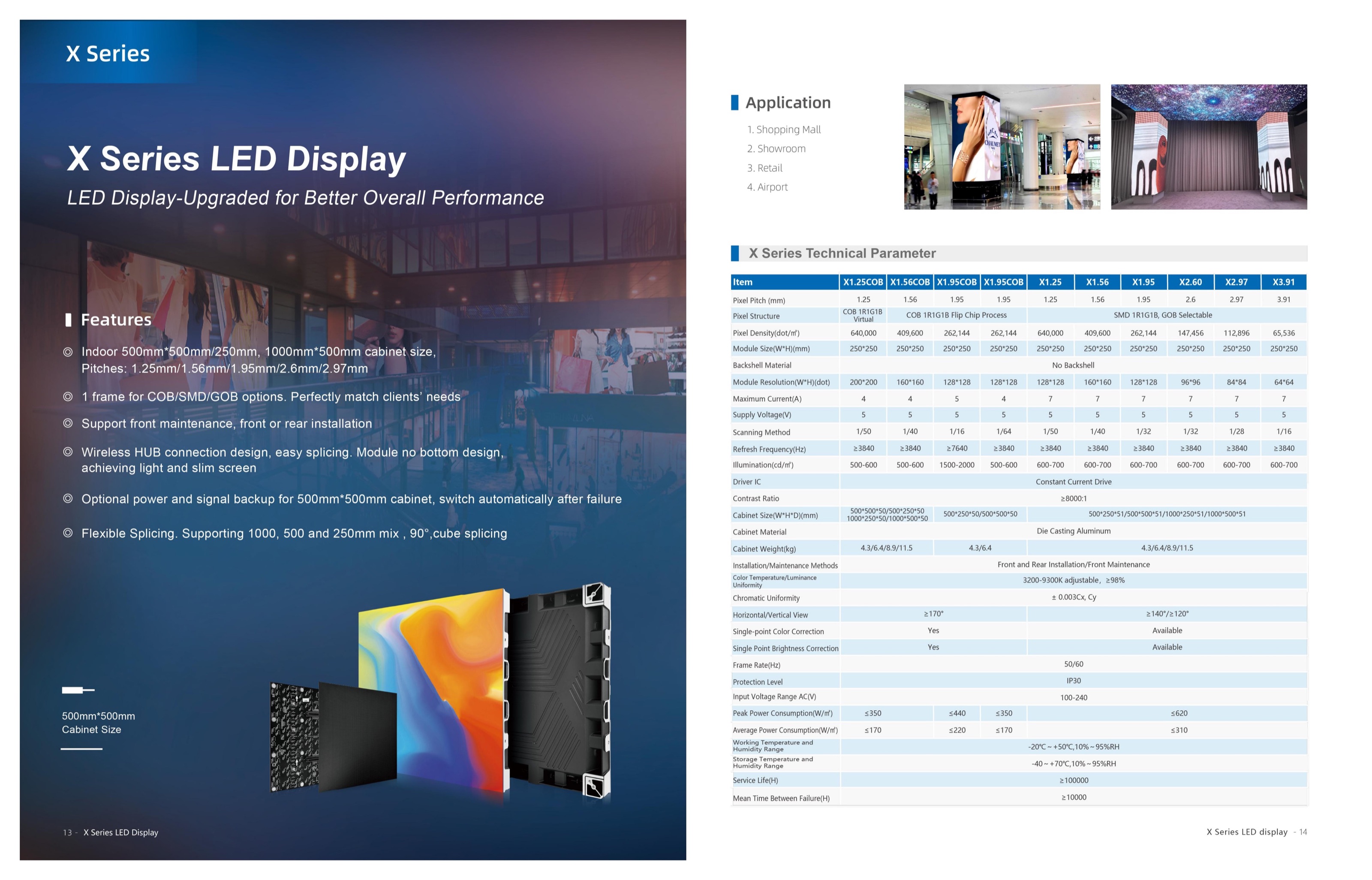

Inquiry / 询价| Pixel Pitch | COB: P1.25/P1.56/P1.95 (Flip Chip + Virtual); SMD: P1.25/P1.56/P1.95/P2.6/P2.97/P3.91 (GOB) |
|---|---|
| Pixel Structure | COB 1R1G1B / SMD 1R1G1B, GOB Selectable |
| Pixel Density | 640,000 / 409,600 / 262,144 / 147,456 / 112,896 / 65,536 dots/㎡ |
| Module Size (W×H) | 250×250mm |

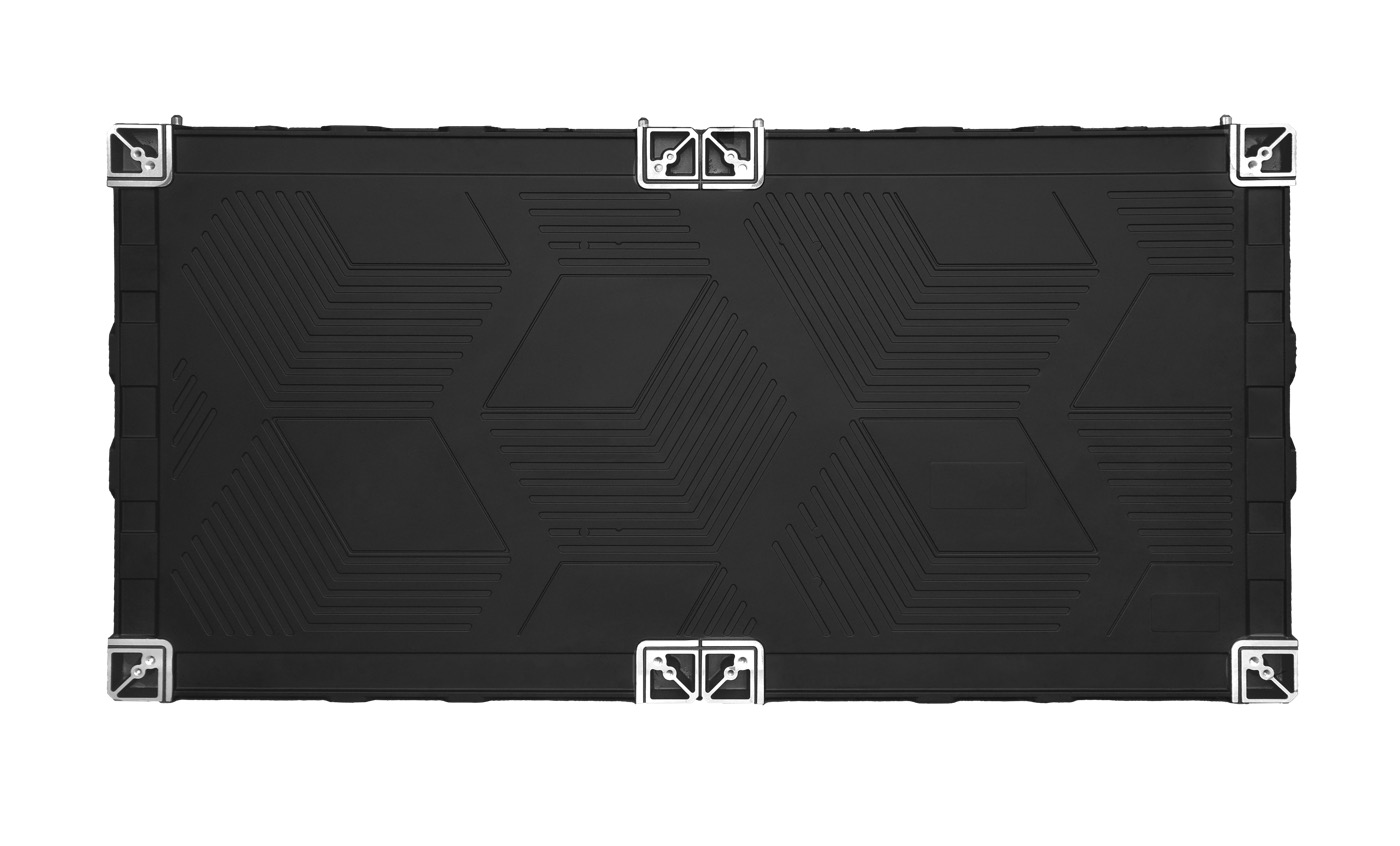

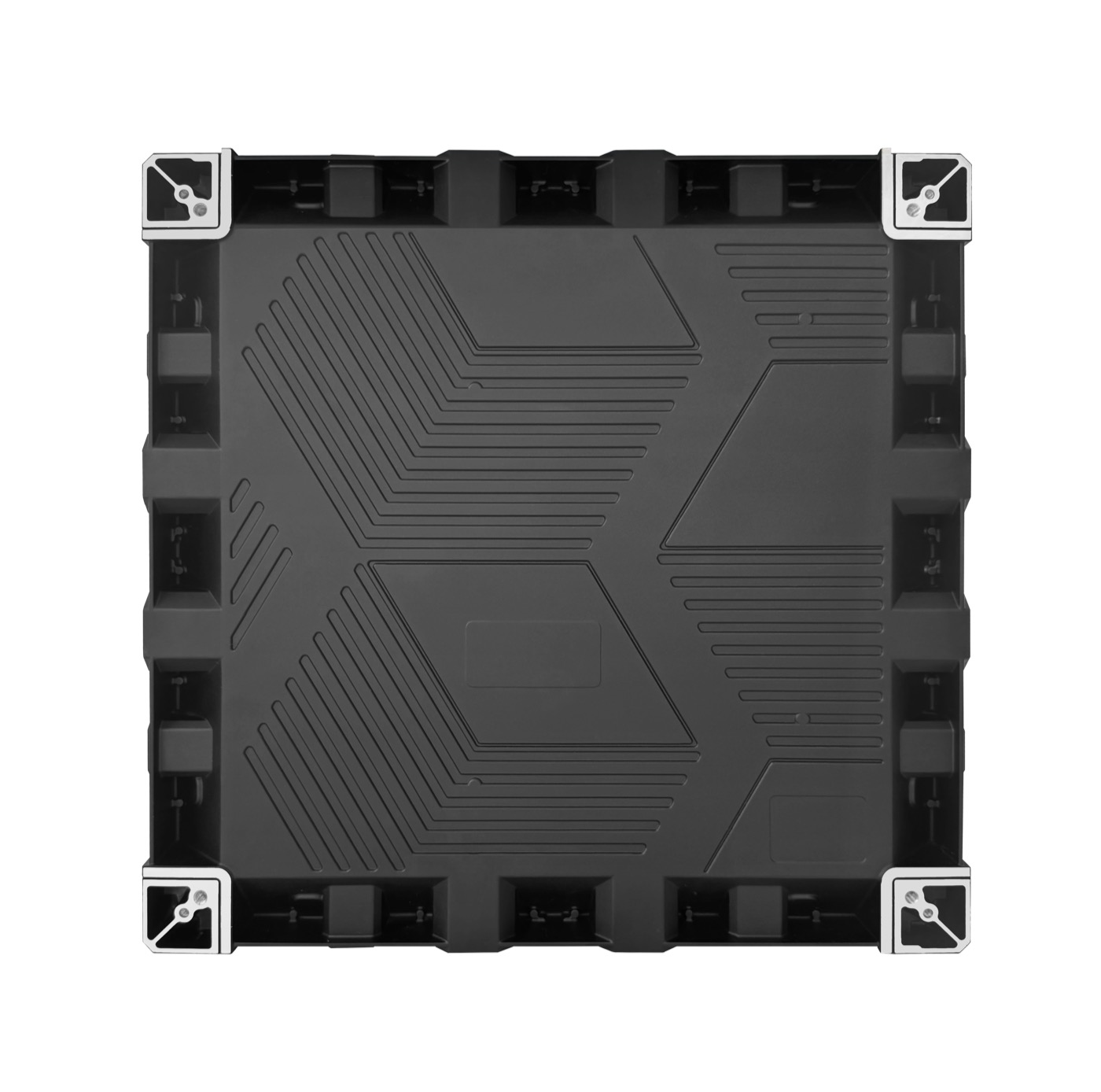

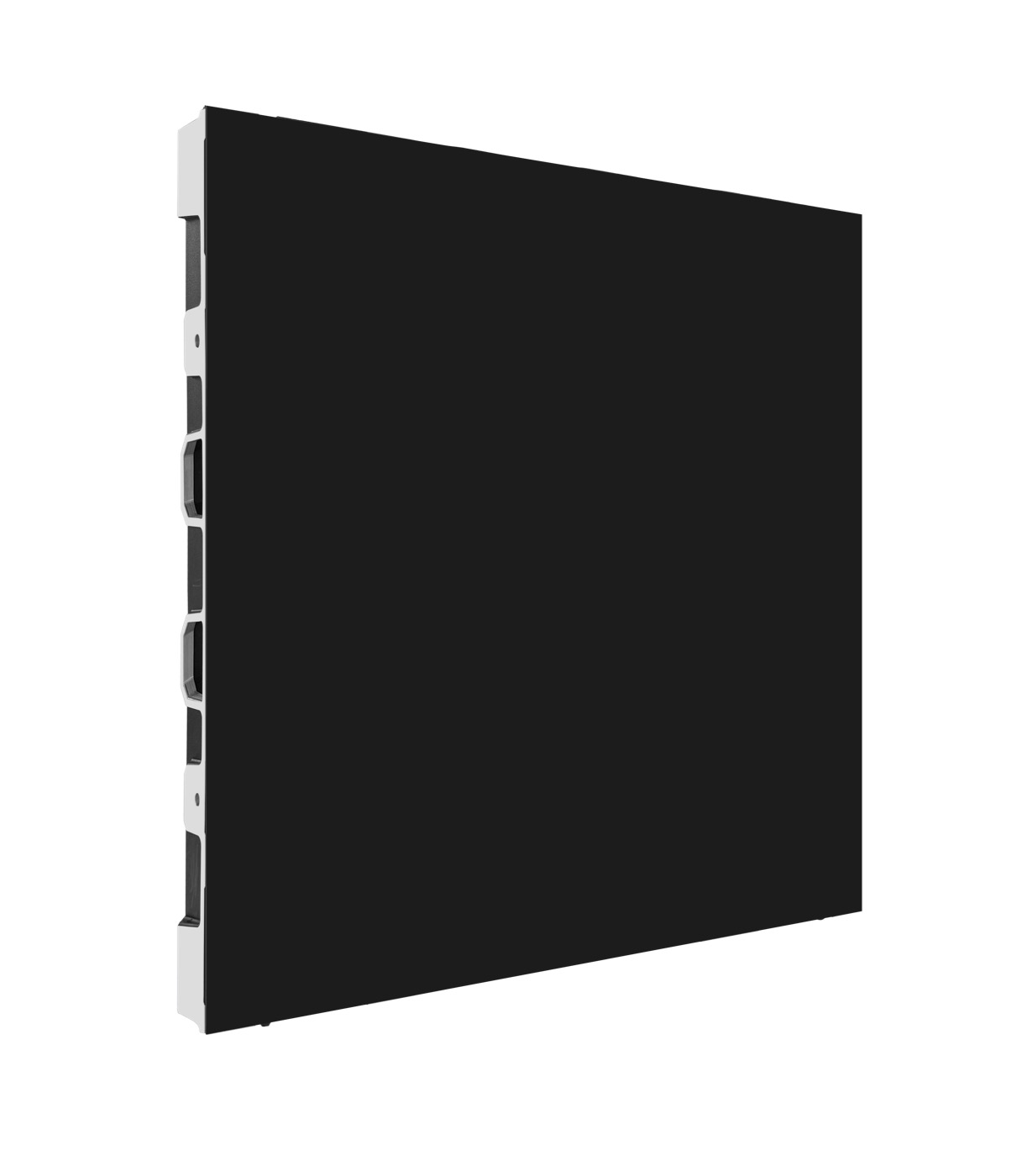

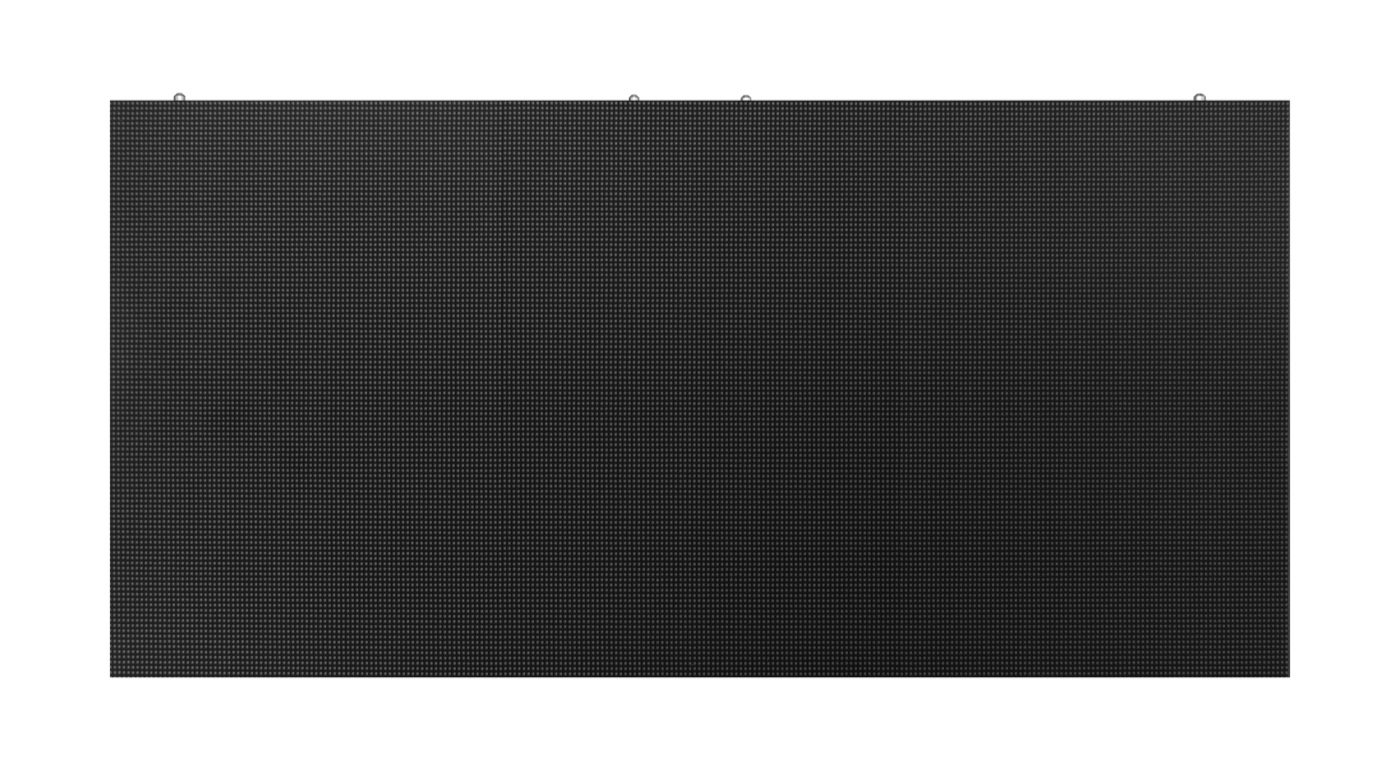

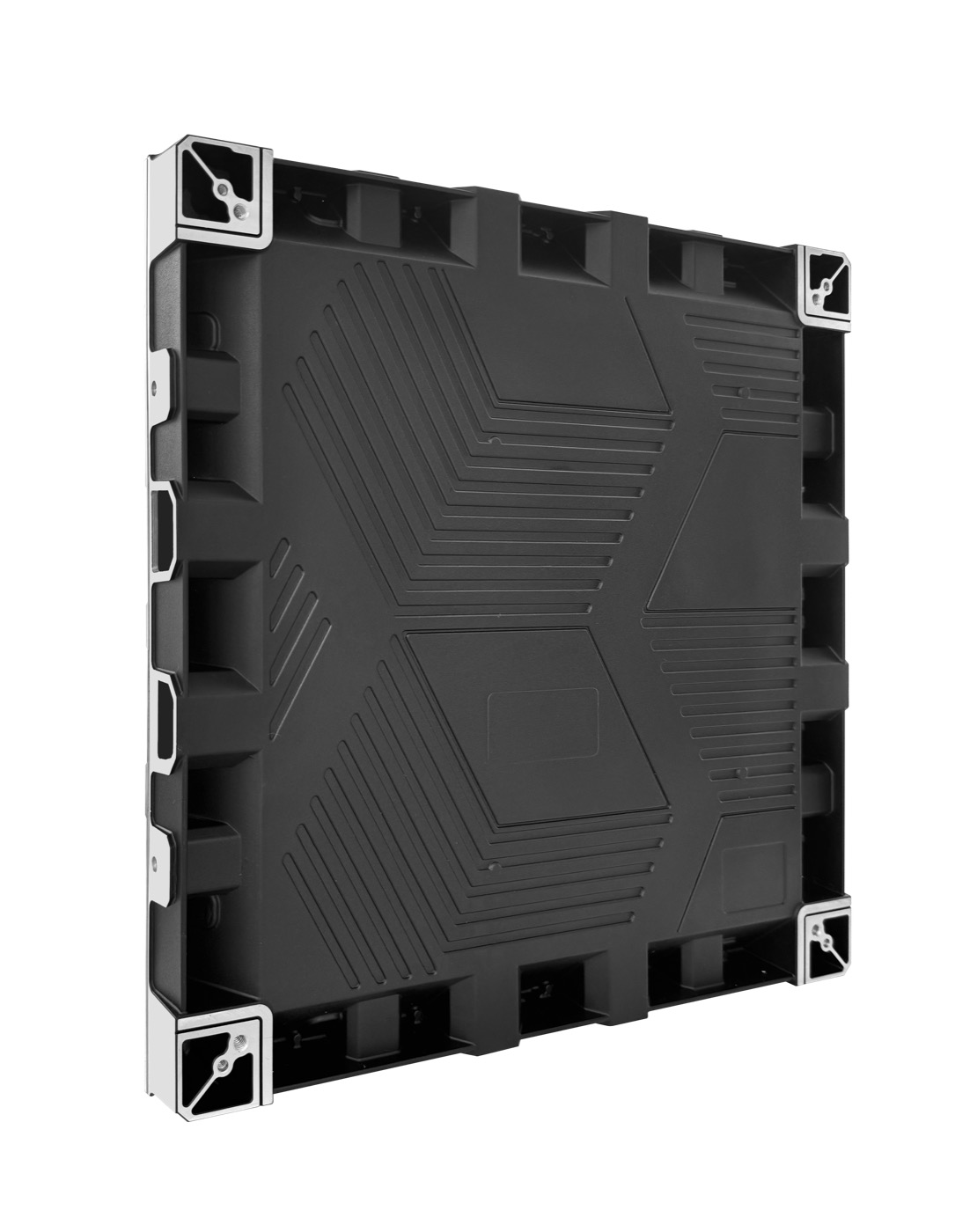

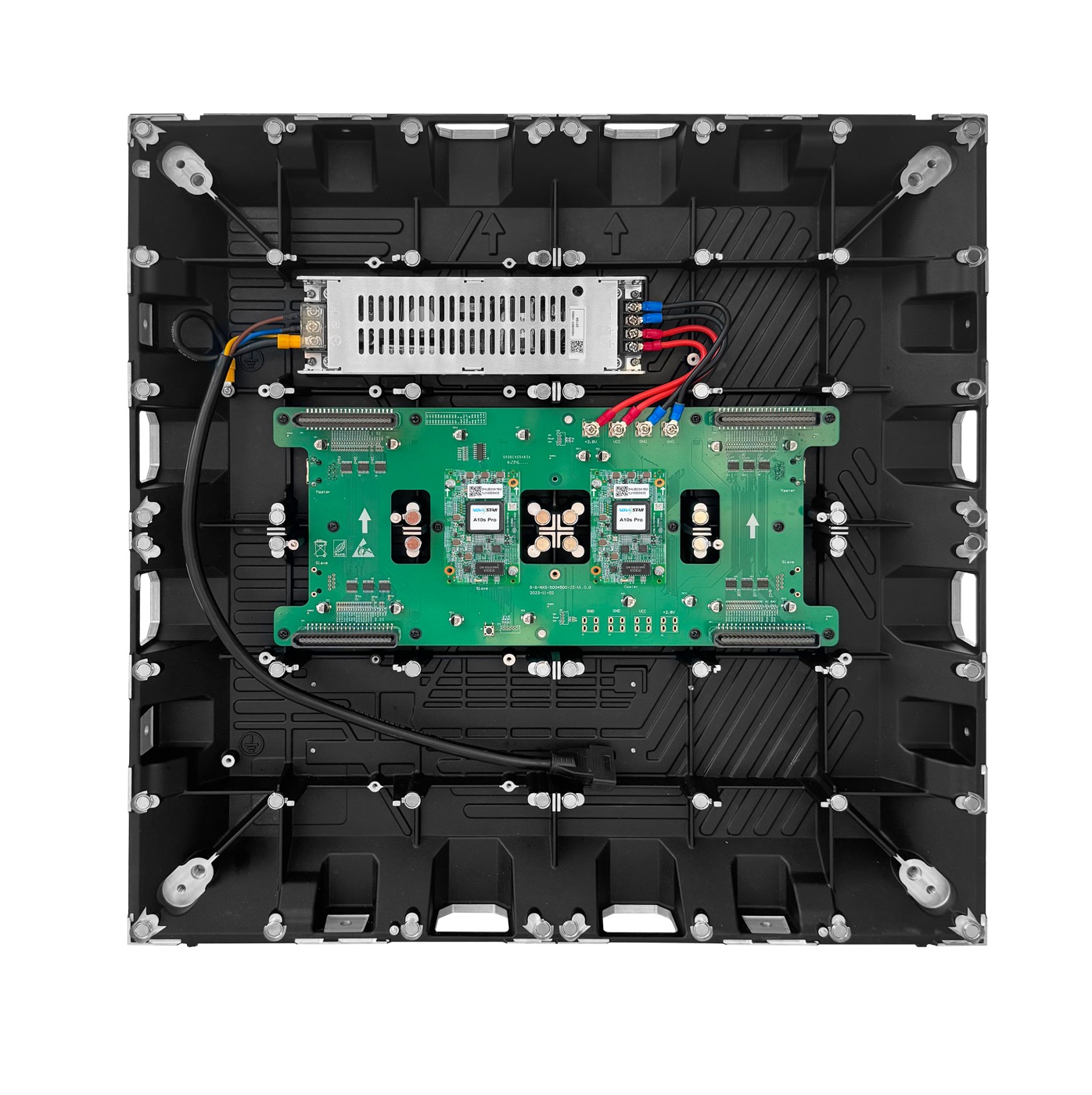

| Cabinet Size | 500×500mm / 250mm / 1000×500mm |
| Backshell | No Backshell |
| Maintenance | Front Service (Front or Rear Installation) |
| Supply Voltage | DC 5V |
| Max Current | 4A / 7A |

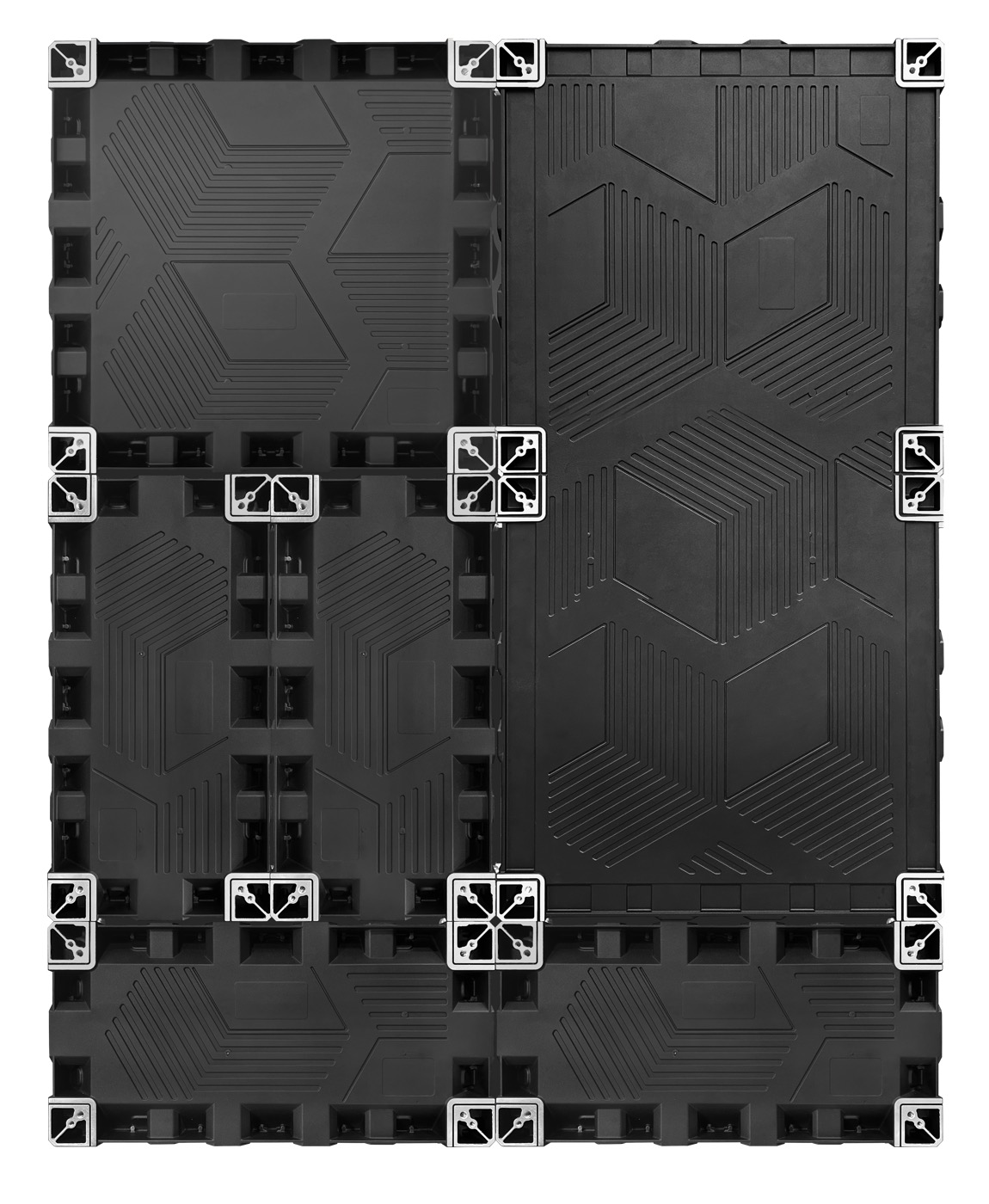

The ultimate all-in-one platform — COB flip chip, virtual COB, SMD, and GOB all supported in a single cabinet ecosystem. Mix and match for any project.
Front maintenance with support for both front and rear installation — maximum flexibility for architecturally constrained spaces in premium retail and airports.

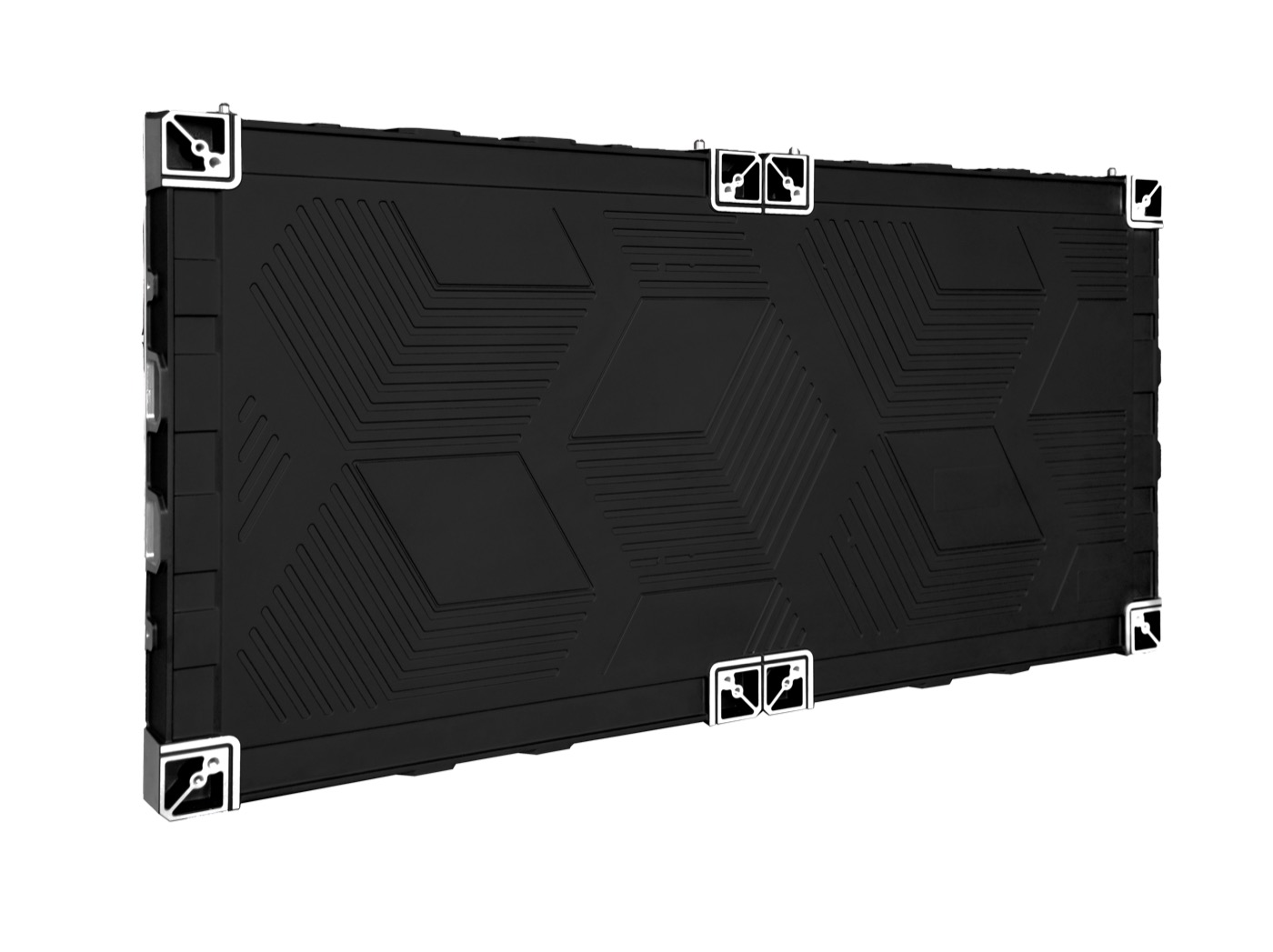

Upgraded for better overall performance — three cabinet size options (500×500mm, 250mm, 1000×500mm) seamlessly adapt to custom display dimensions.
