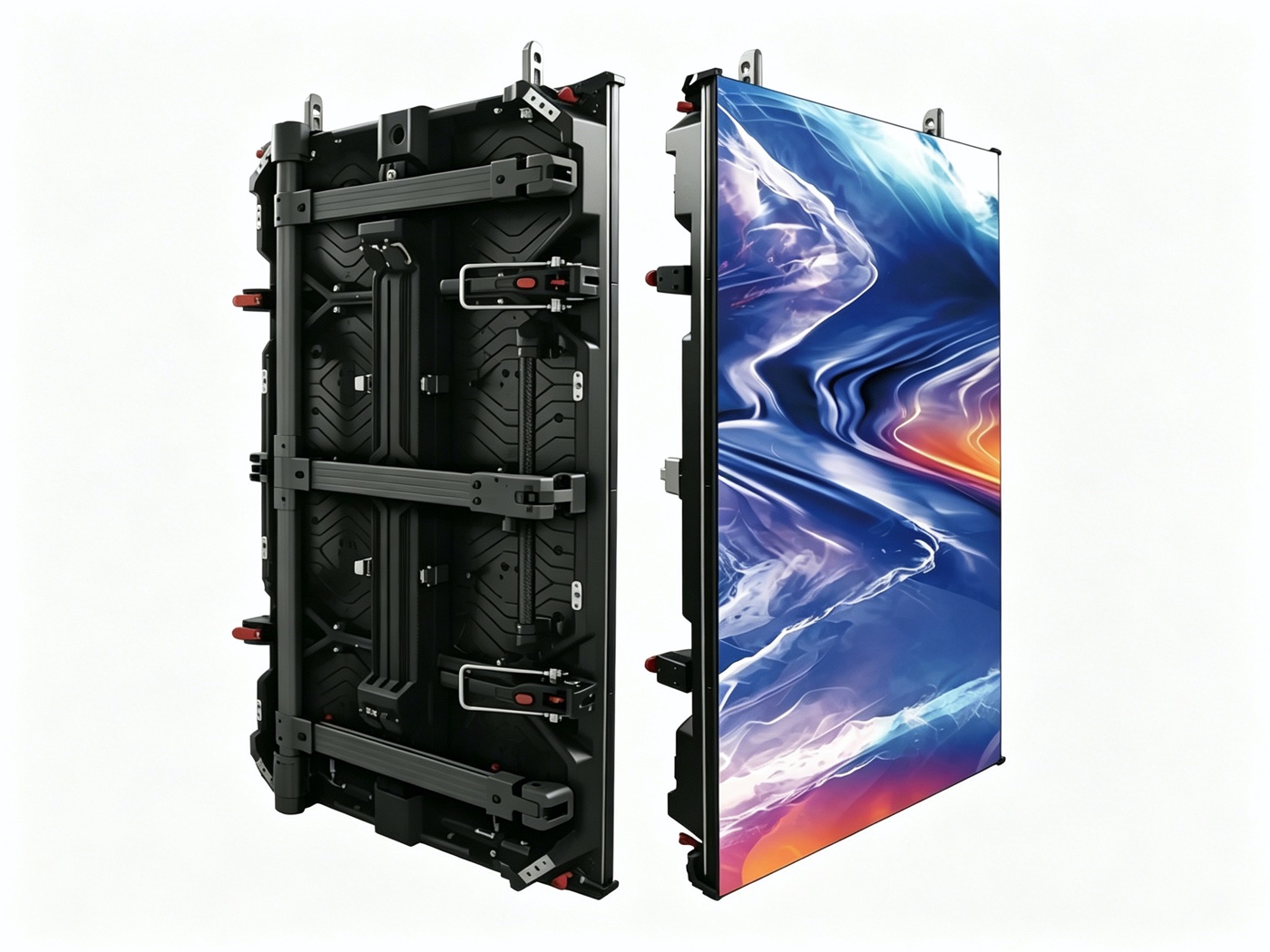

COB ZH Series is engineered for heavy-duty touring and outdoor events. Wind-load resistant up to 20m/sec wind speeds. 3400-4000cd/㎡ brightness with ≥10000:1 contrast. 500×1000×94mm cabinet with customizable curving from -7.5° to +7.5°. Superior waterproof, dustproof, and oxidation resistance.
Inquiry / 询价| Pixel Pitch | P1.95 / P2.6 |
|---|---|
| Pixel Structure | COB 1R1G1B Flip Chip Process |
| Pixel Density | 262,144 / 147,456 dots/㎡ |

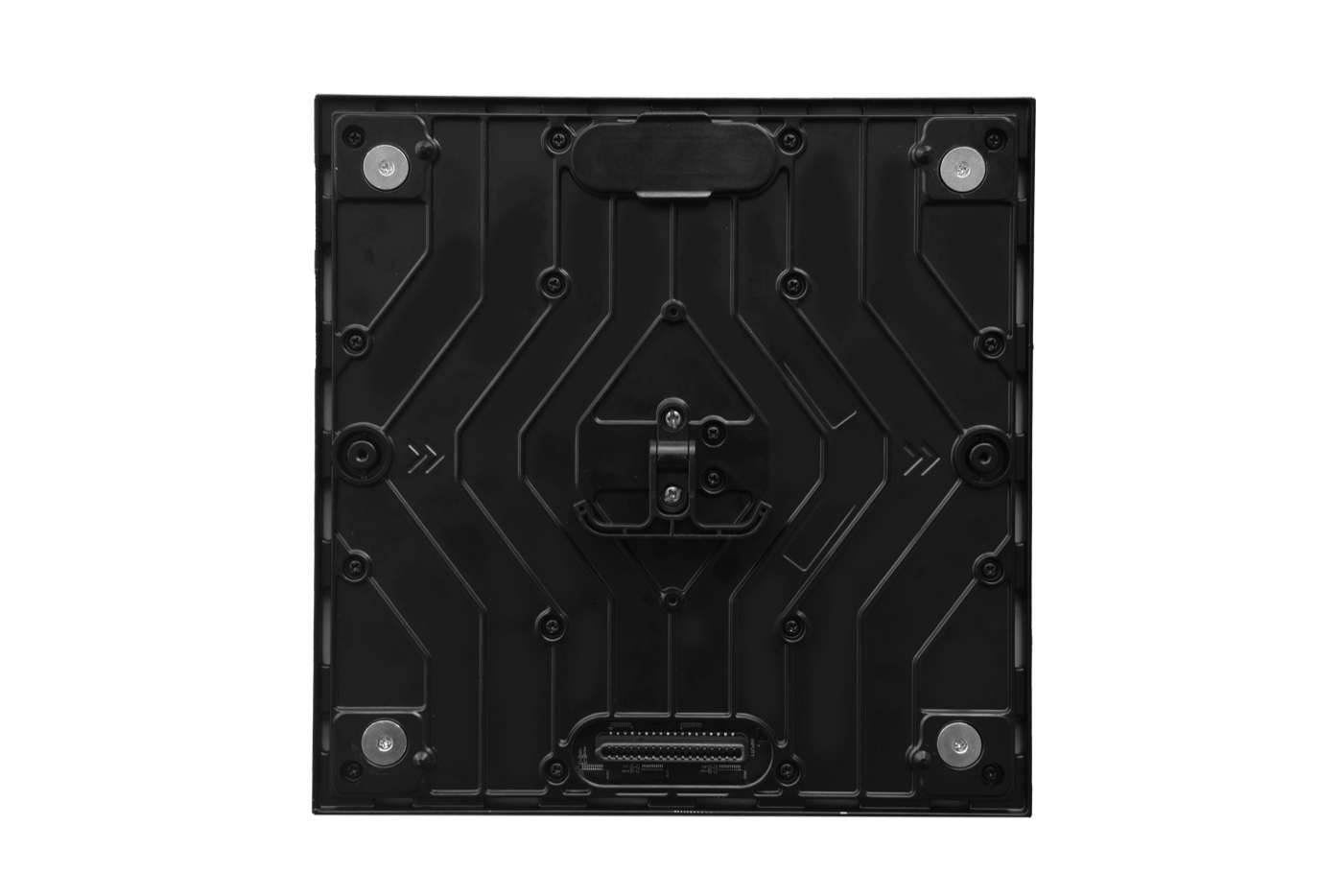

| Module Size (W×H) | 250×250mm |

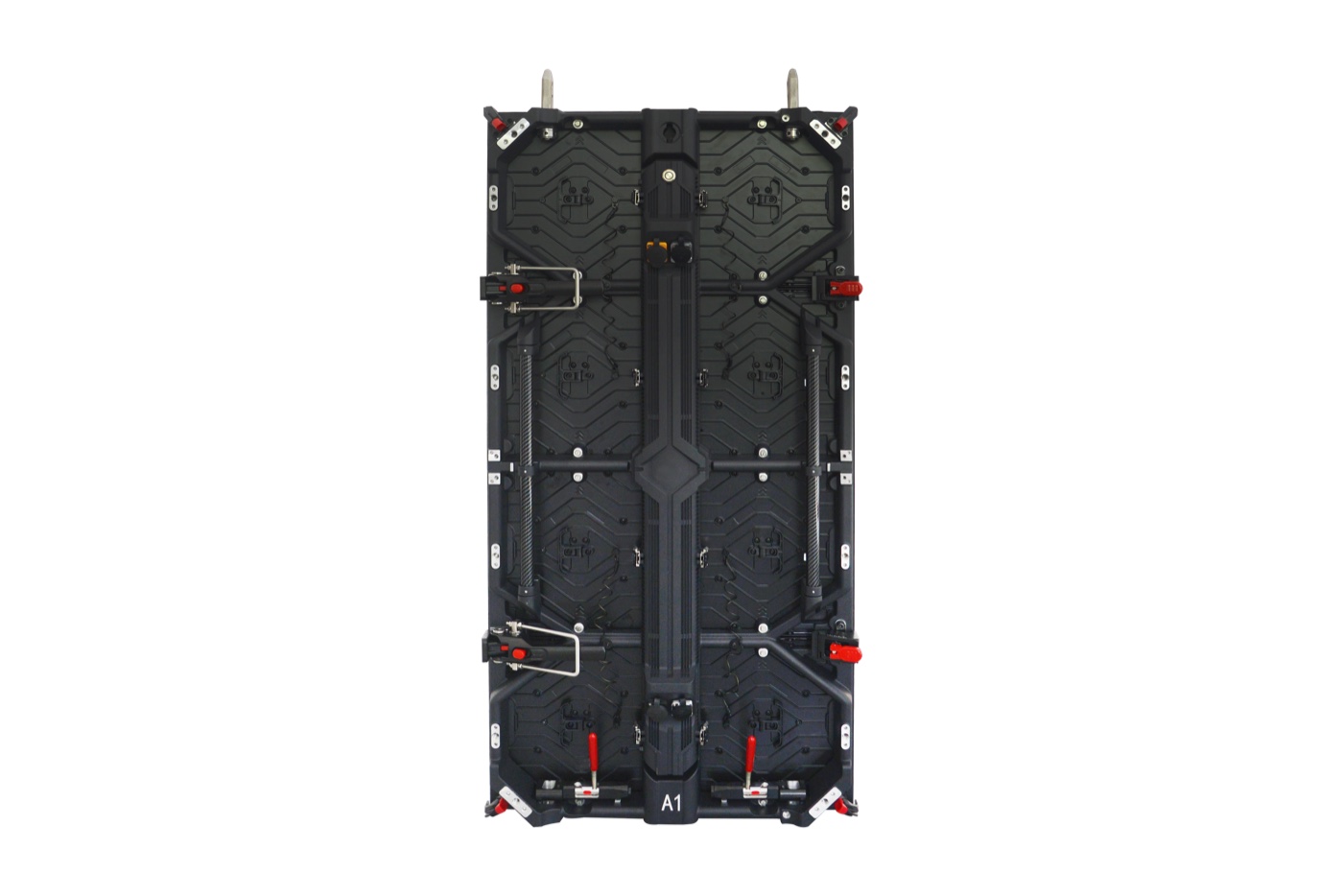

| Cabinet Size (W×H×D) | 500×1000×94mm |
| Cabinet Material | Die Casting Aluminum |
| Scanning Method | 1/16 / 1/8 |
| Refresh Rate | ≥7680Hz |
| Brightness | 3400-4000 cd/㎡ |
| Contrast Ratio | ≥10000:1 |
| Curving Range | -7.5° ~ +7.5° |
| Wind Resistance | Up to 20m/s |

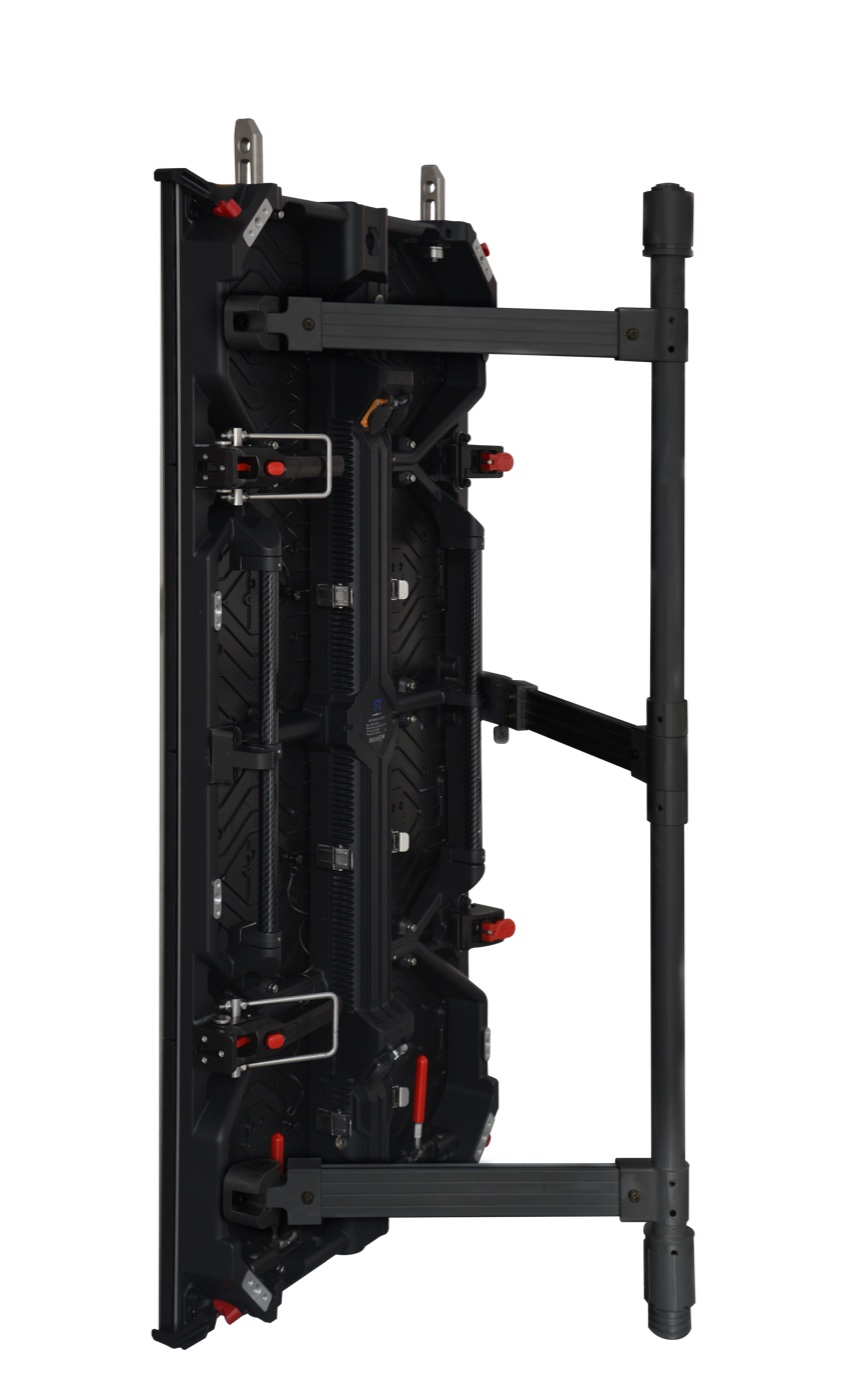

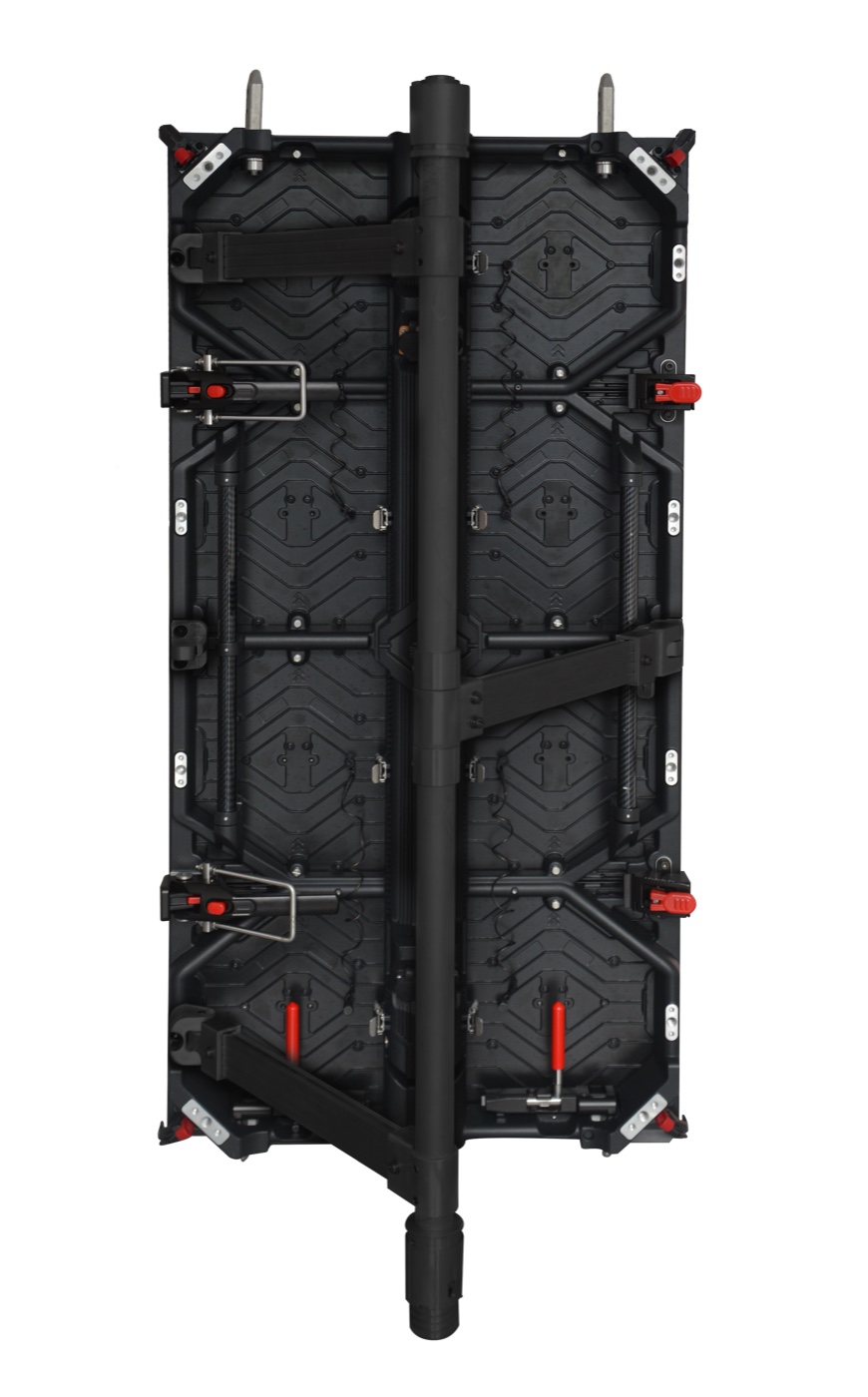

Wind-load resistant up to 20m/sec — engineered for outdoor concerts, festivals, and touring events where structural integrity is critical.
Superior waterproof, dustproof, oxidation-resistant, anti-static, and impact-resistant — built for the harshest touring conditions.

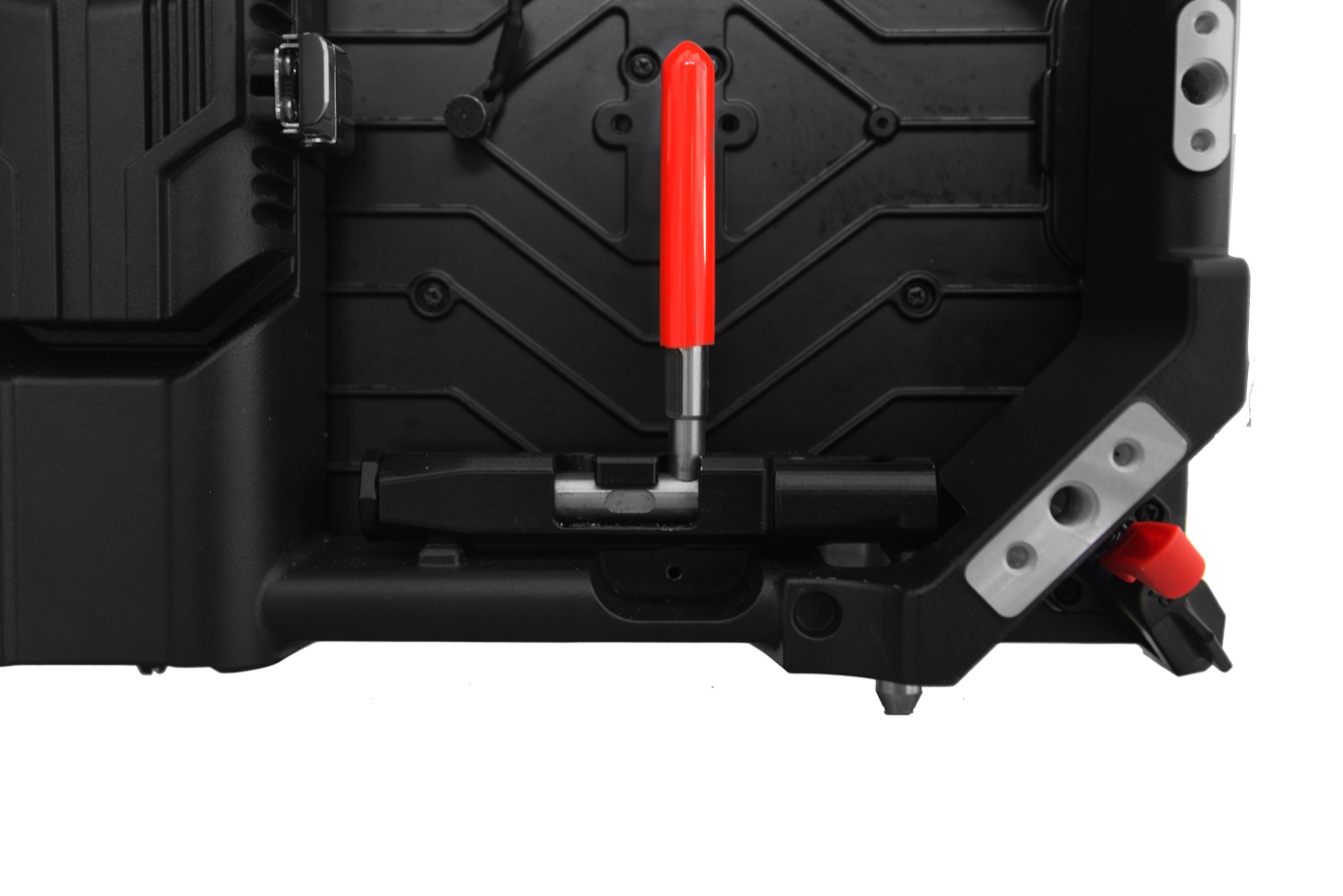

Customizable curving blocks from -7.5° to +7.5° with optional common cathode for energy-saving — flip-chip COB with low power consumption.
