Pioneer COB Outdoor · 3000 nits · Fixed
Pioneer COB Outdoor · 3000 nits · Fixed
COB EF Series is the pioneering COB outdoor fixed LED display. Flip-chip COB technology with 3000cd/㎡ brightness and ≥10000:1 contrast ratio. Die-cast aluminum module and integrated power box design. Ideal for flagship stores, business advertising, and billboards in challenging outdoor conditions.

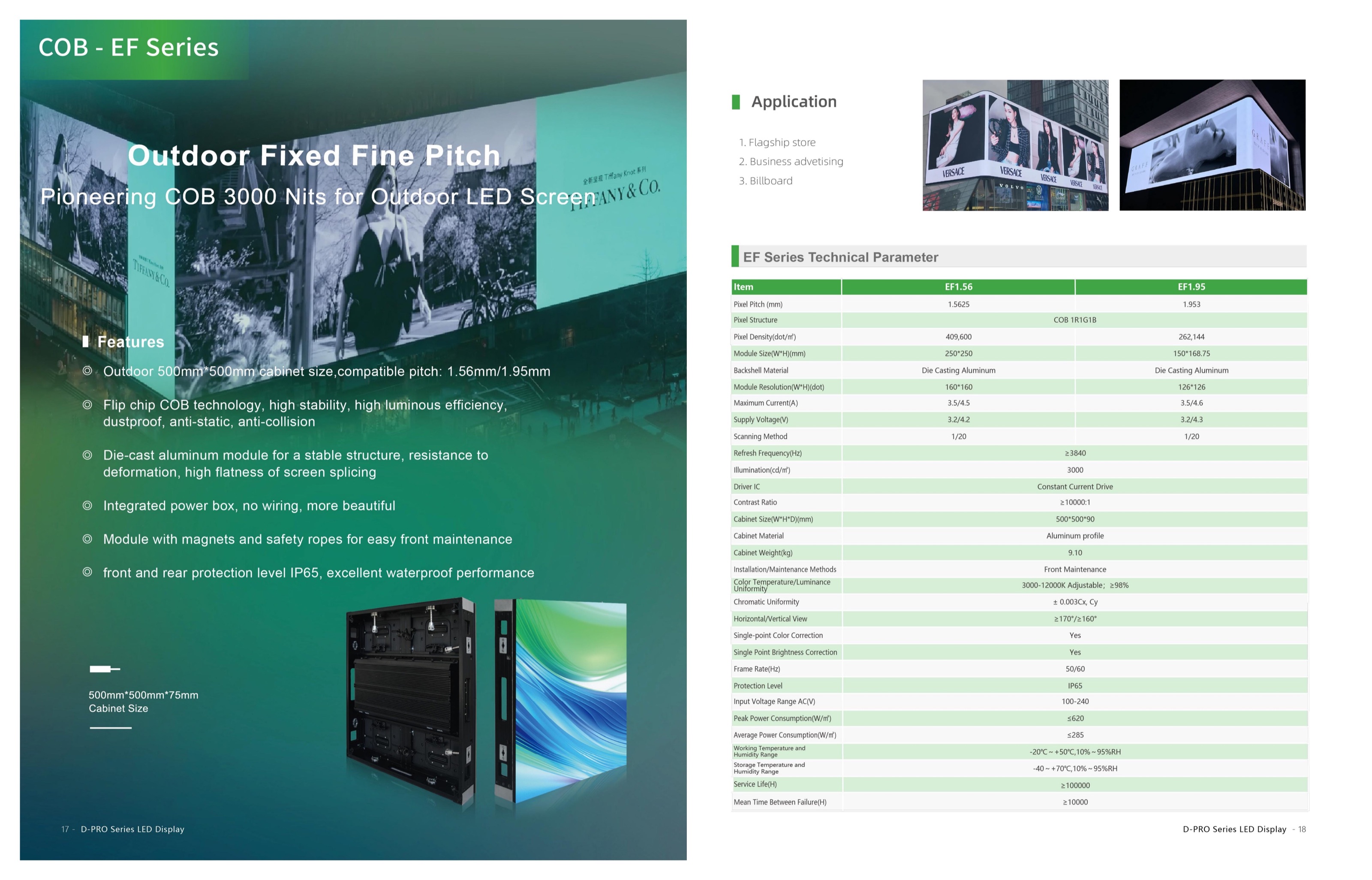

Inquiry / 询价| Pixel Pitch | P1.5625 / P1.953 |
|---|---|
| Pixel Structure | COB 1R1G1B Flip Chip |
| Pixel Density | 409,600 / 262,144 dots/㎡ |

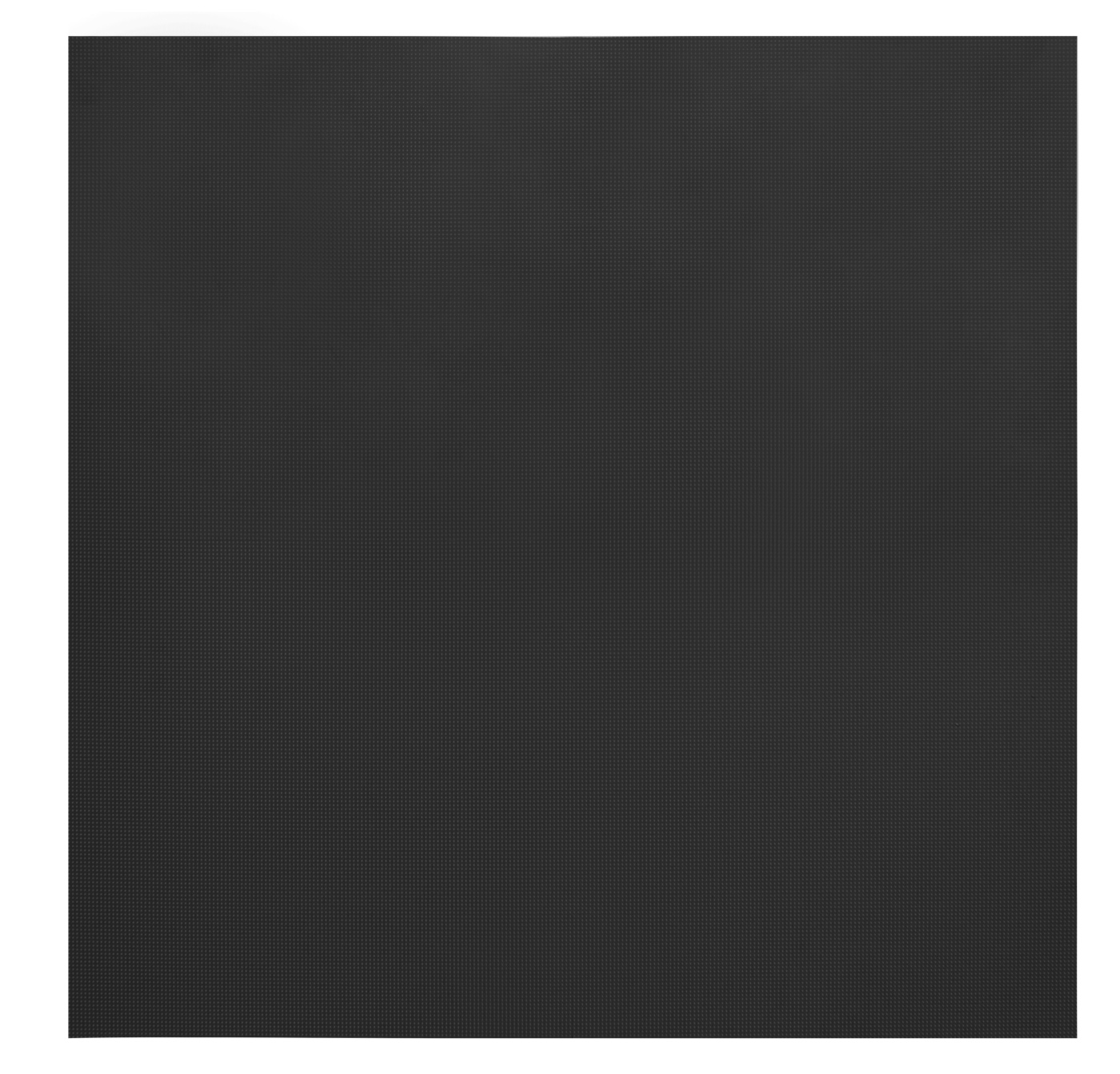

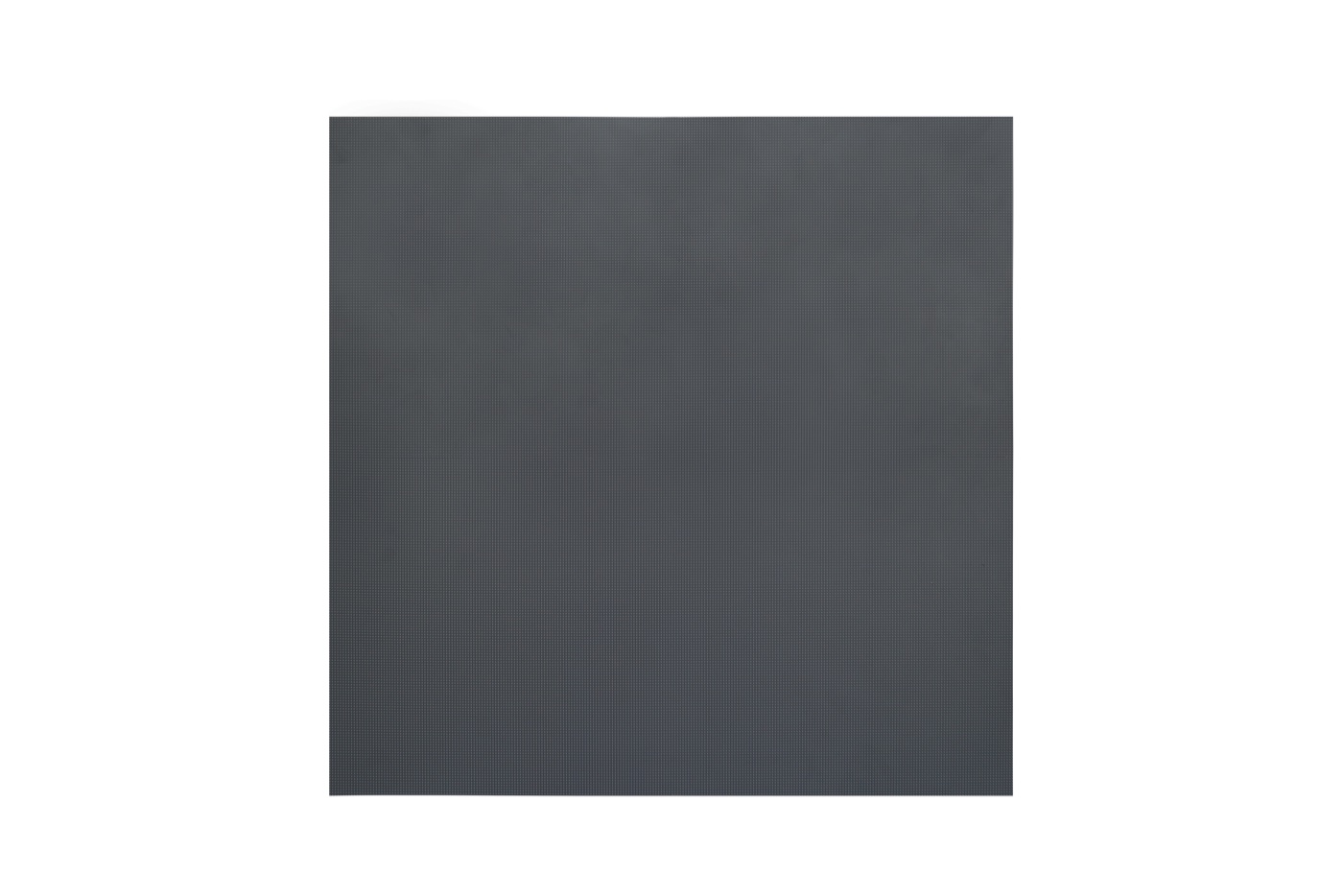

| Module Size (W×H) | 250×250mm / 150×168.75mm |
| Cabinet Size | 500×500mm (compatible dual pitch) |
| Backshell | Die Casting Aluminum |
| Scanning Method | 1/20 |
| Refresh Rate | ≥3840Hz |
| Brightness | 3000 cd/㎡ |
| Contrast Ratio | ≥10000:1 |
| Supply Voltage | DC 3.2/4.2V |
| Max Current | 3.5A / 4.5A |
Pioneer 3000 nits COB outdoor display — high brightness ensures clear visibility in direct sunlight. Flip-chip technology for high stability and luminous efficiency.

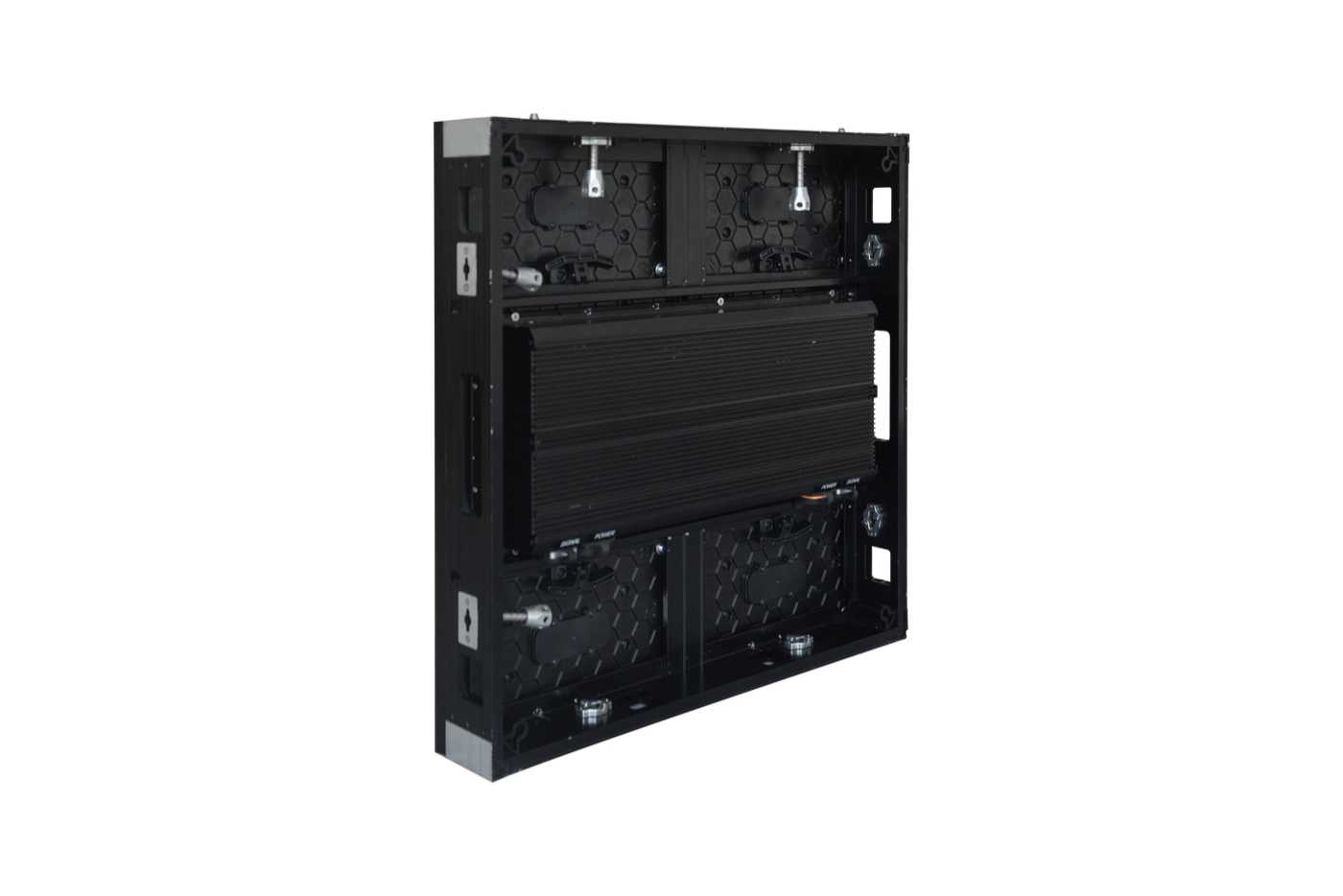

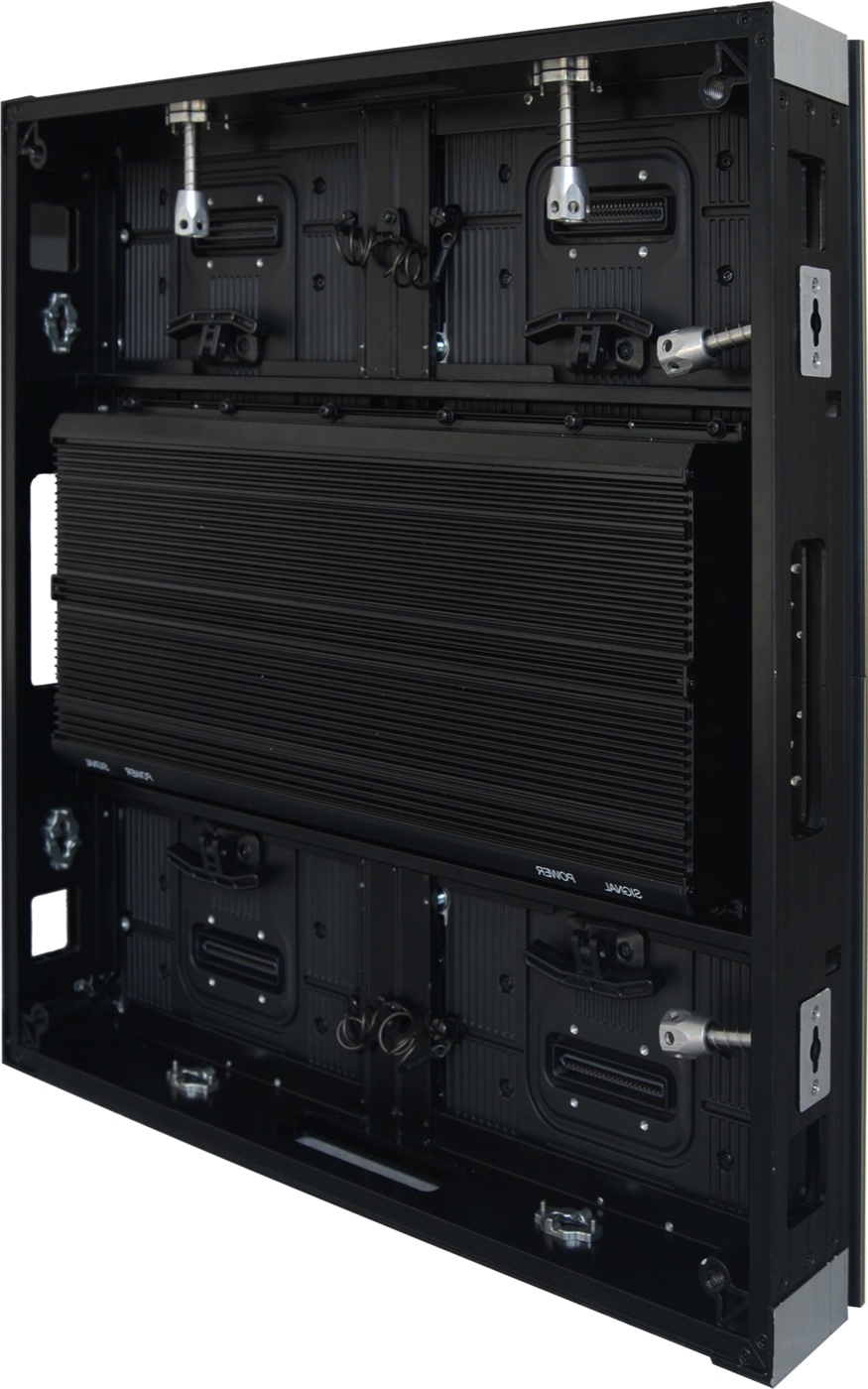

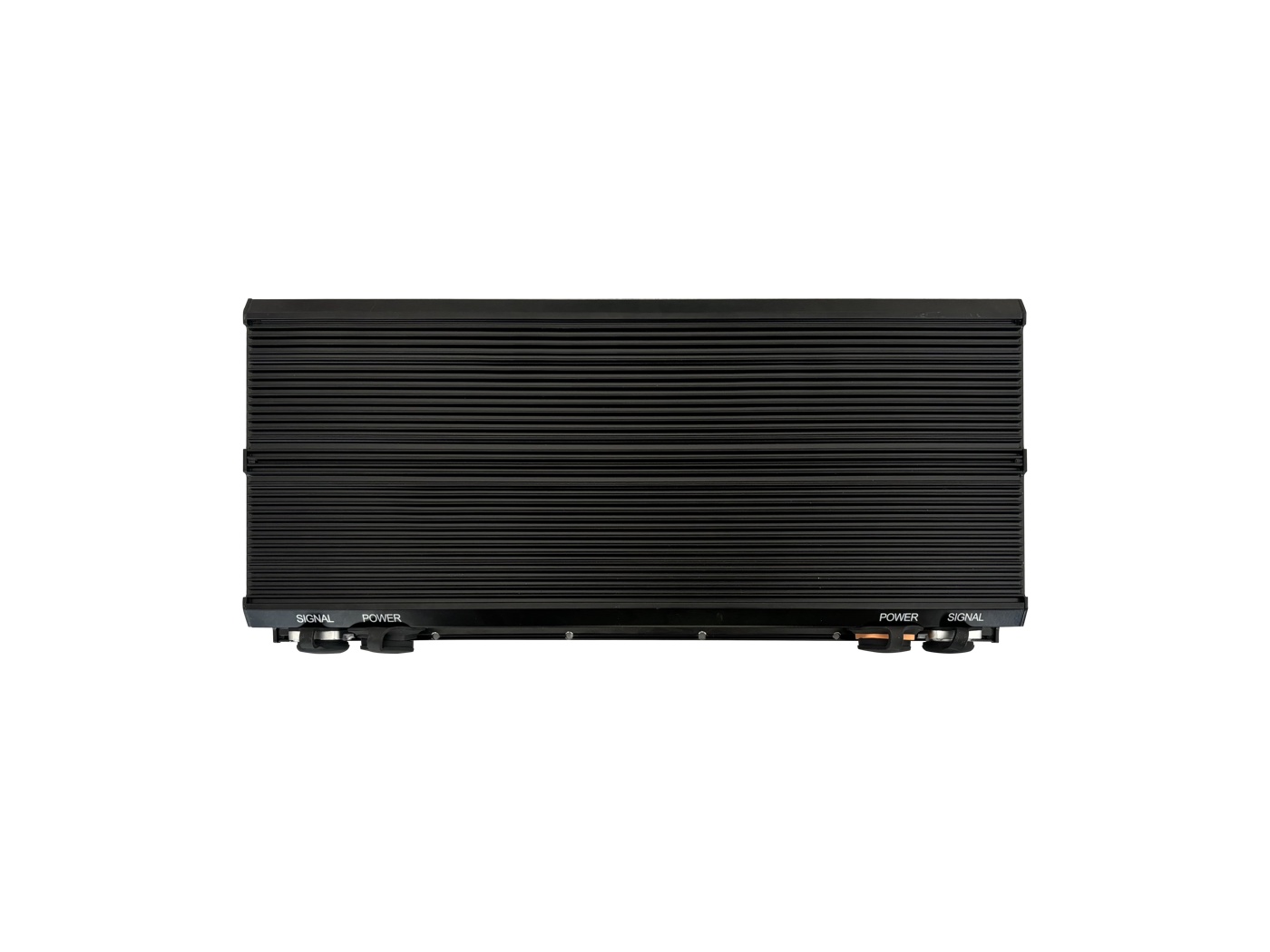

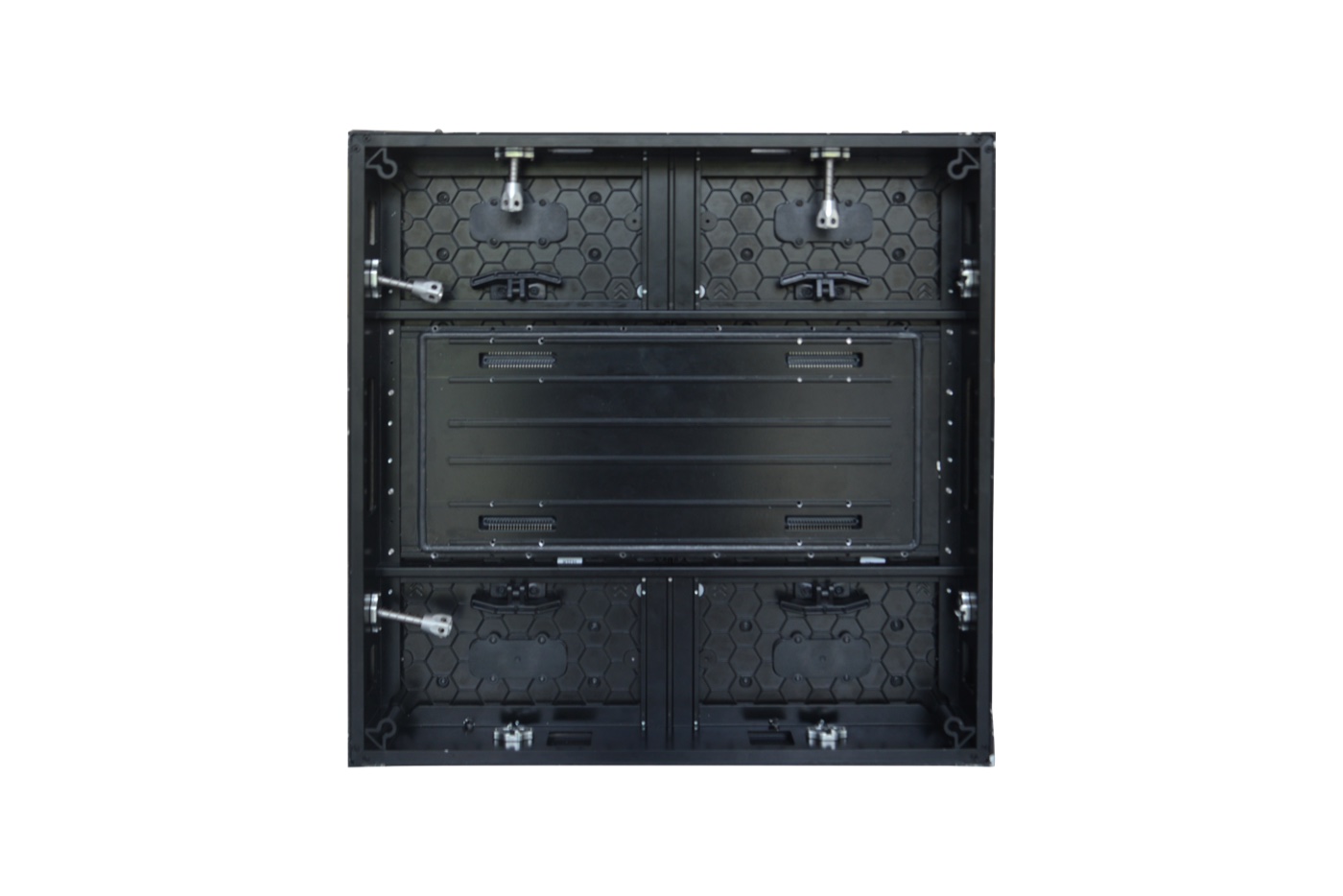

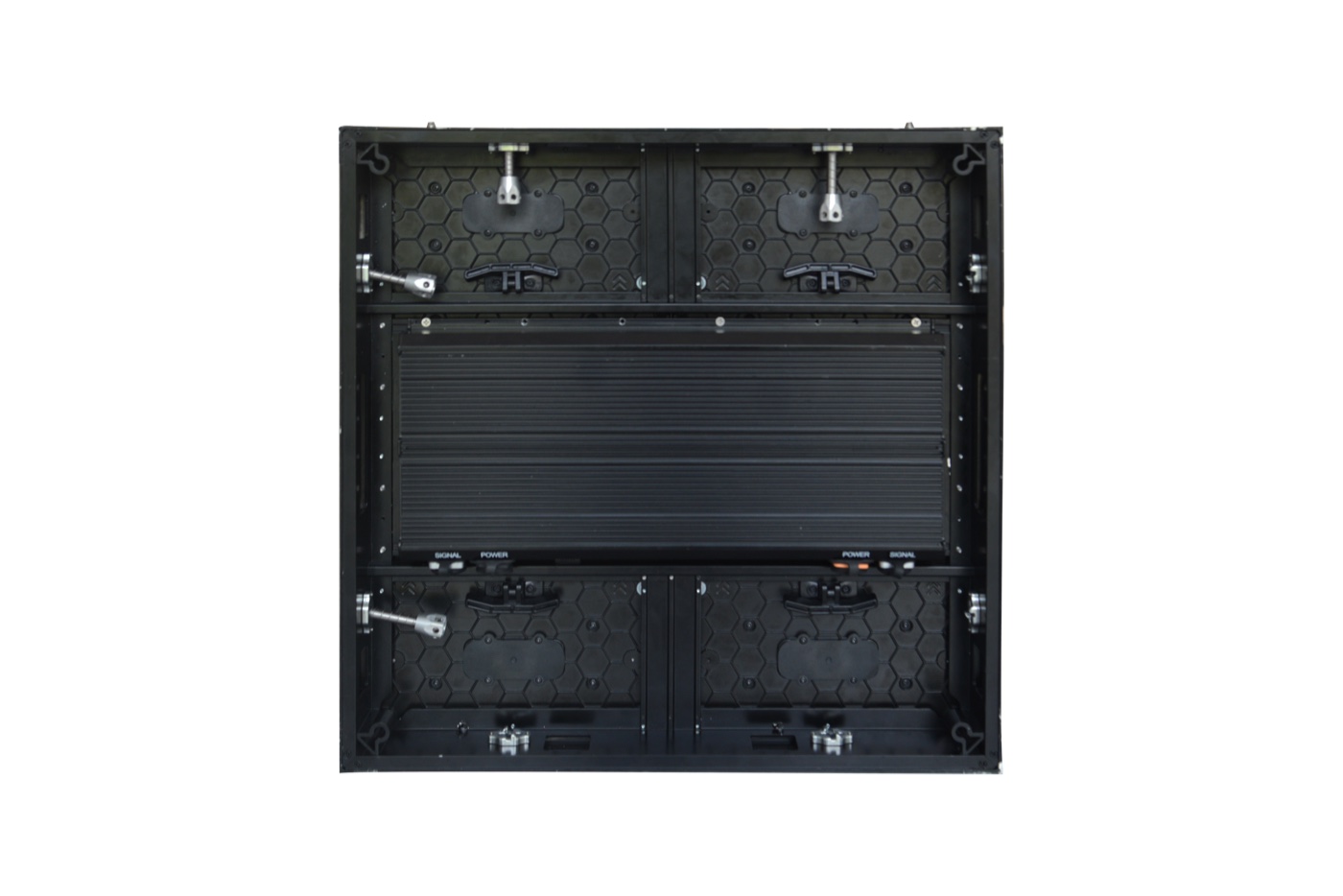

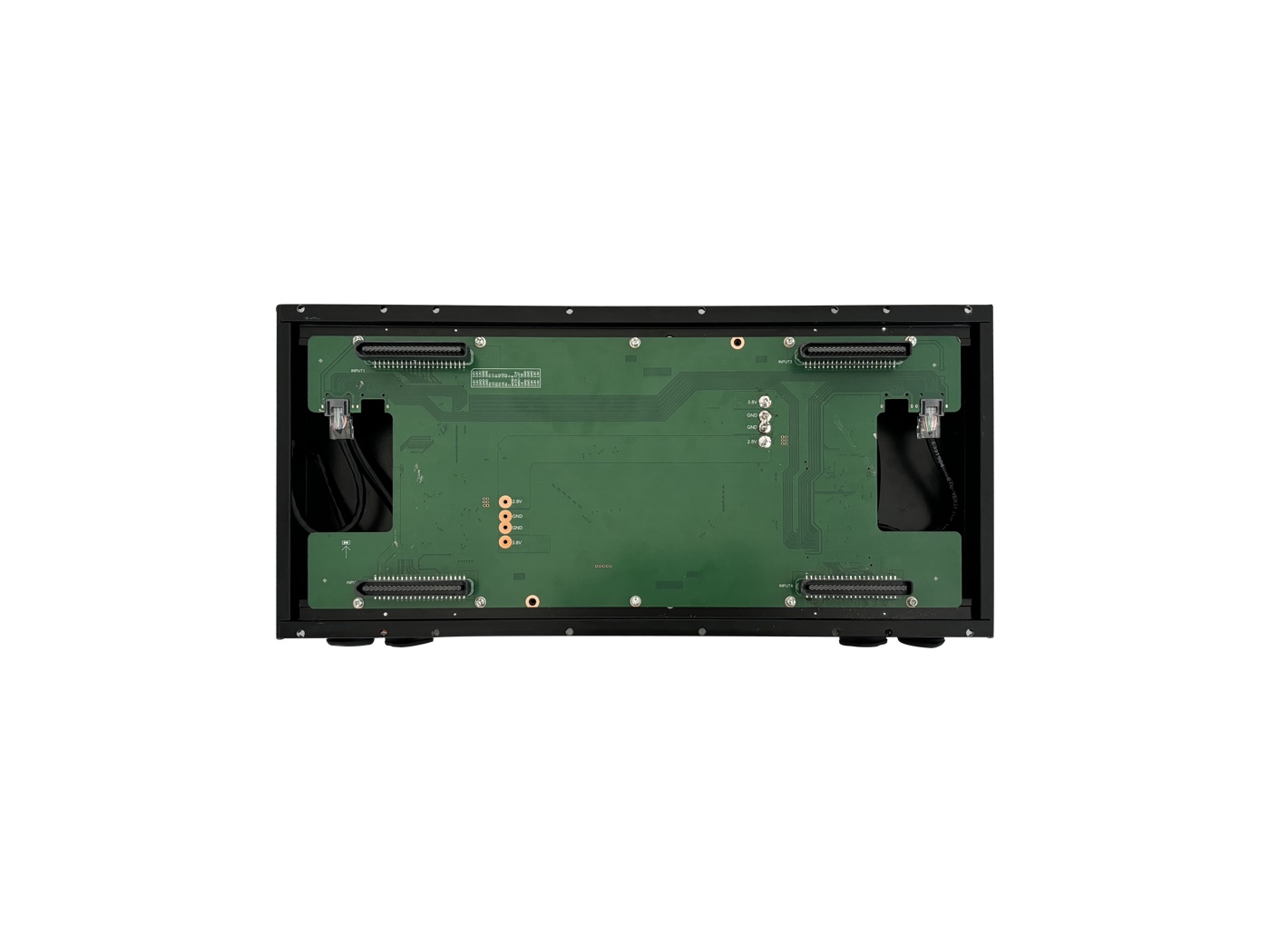

Die-cast aluminum module with integrated power box — no messy wiring, clean and beautiful installation. Dustproof, anti-static, anti-collision protection.

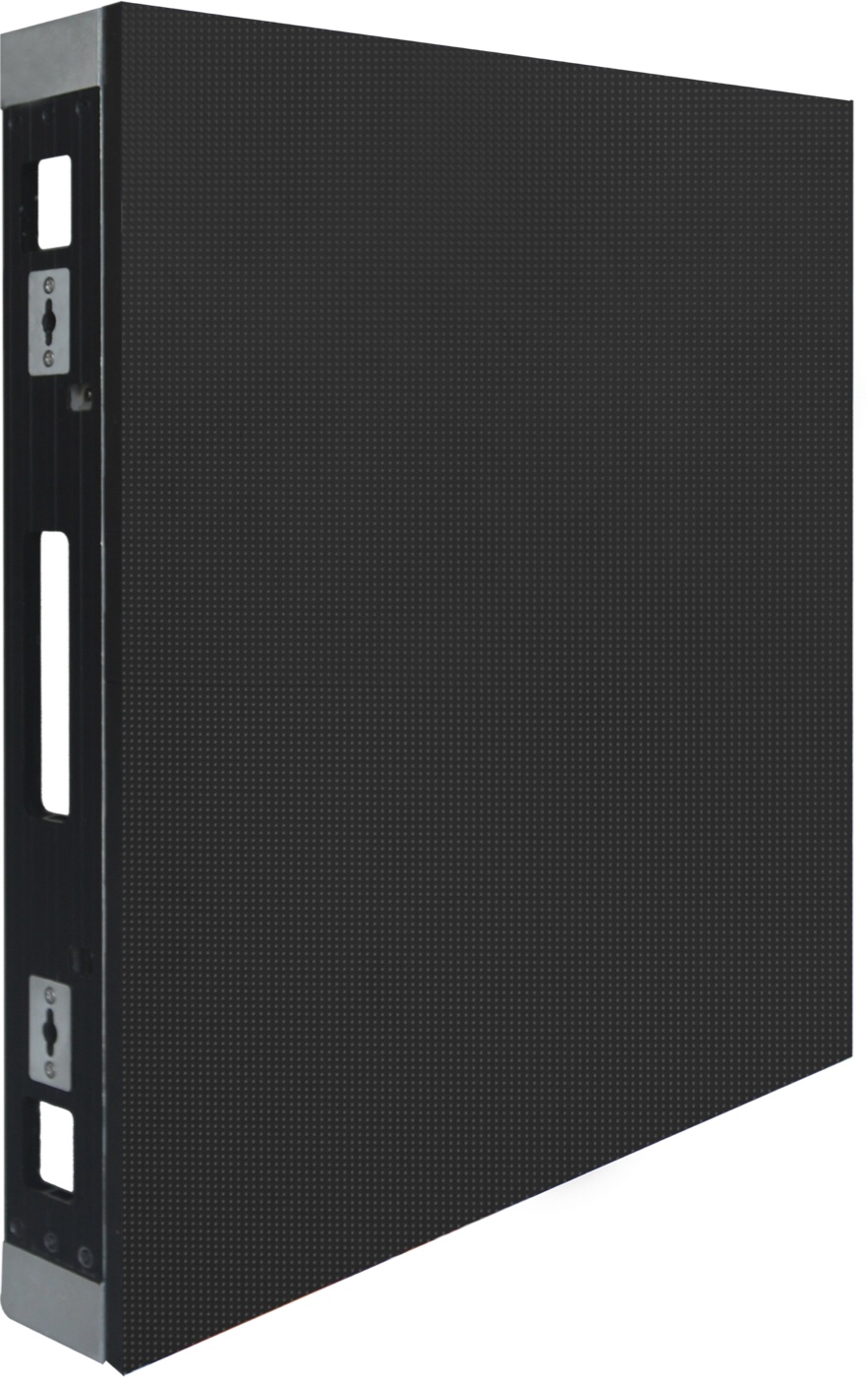

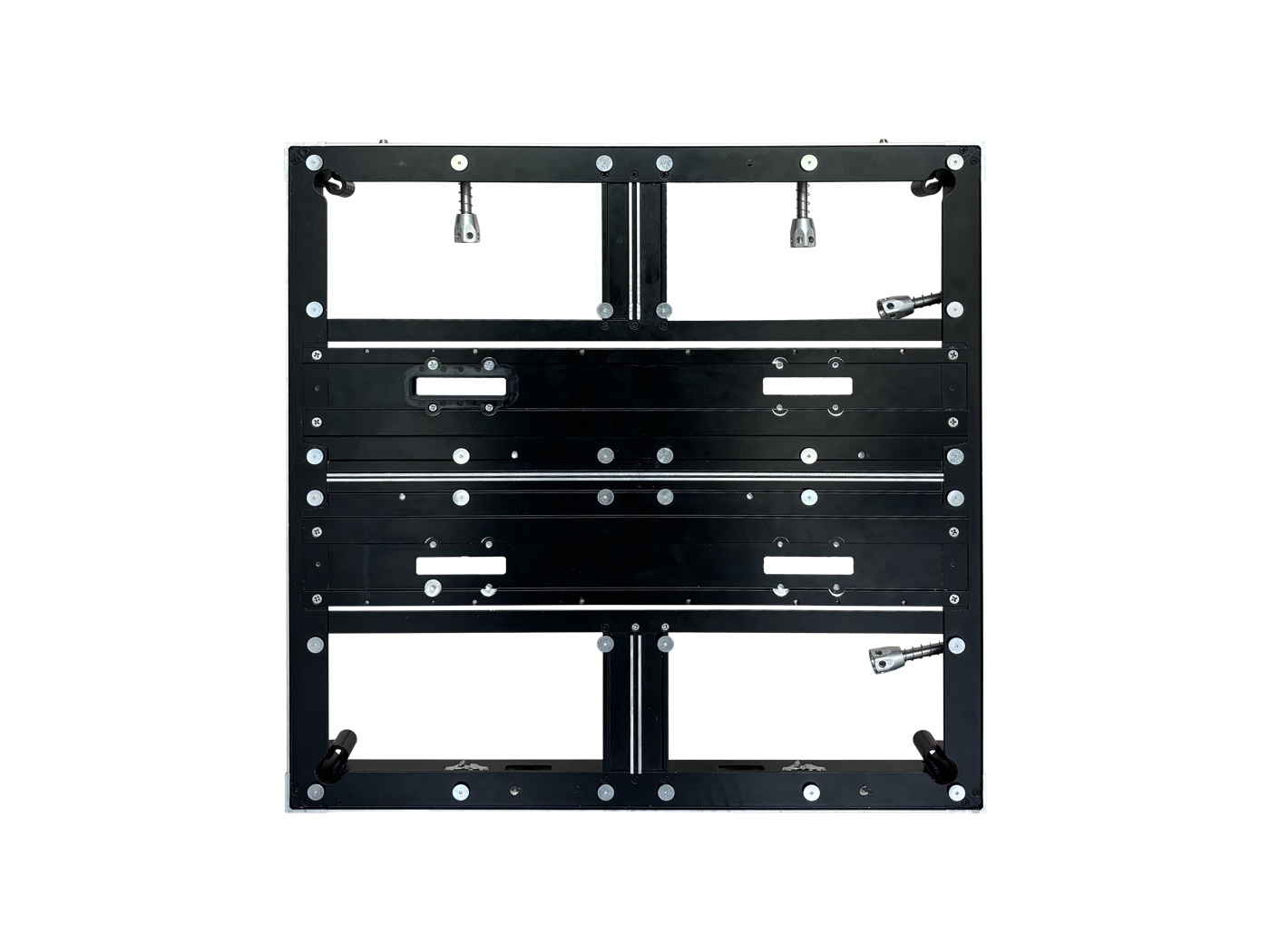

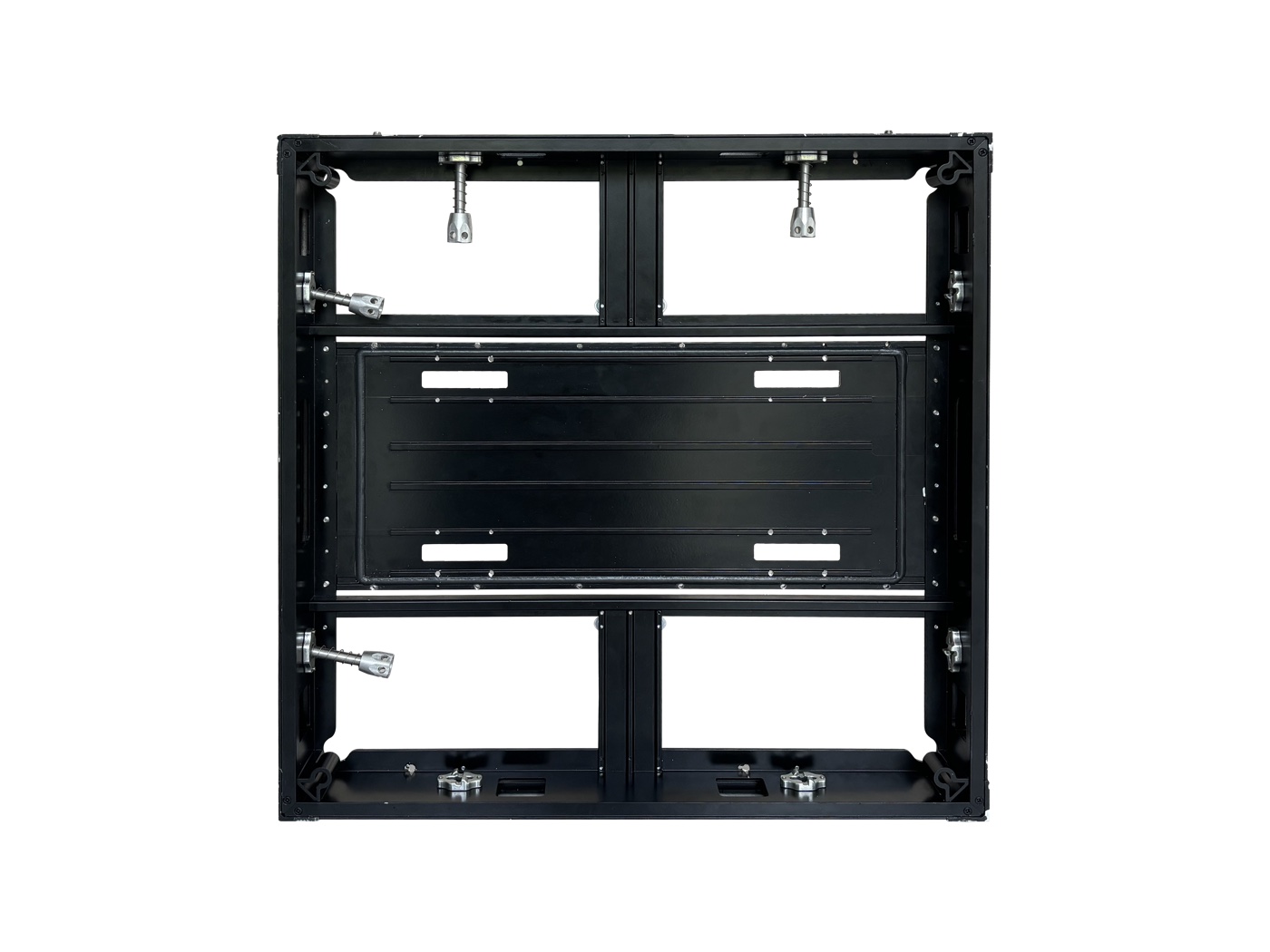

500×500mm universal cabinet compatible with both P1.56 and P1.95 modules — simplifies inventory and enables mixed-pitch deployments.
