High Stability COB Rental · 7680Hz · Flip Chip
High Stability COB Rental · 7680Hz · Flip Chip
COB Z Series is a high-stability COB rental LED display. Flip chip process with 3.5× anti-knock ability over SMD. 500×500mm cabinet supports ±5° curve and right-angle splicing. Optional virtual pixel for even finer effective resolution. Perfect for events, stages, and broadcast facilities.

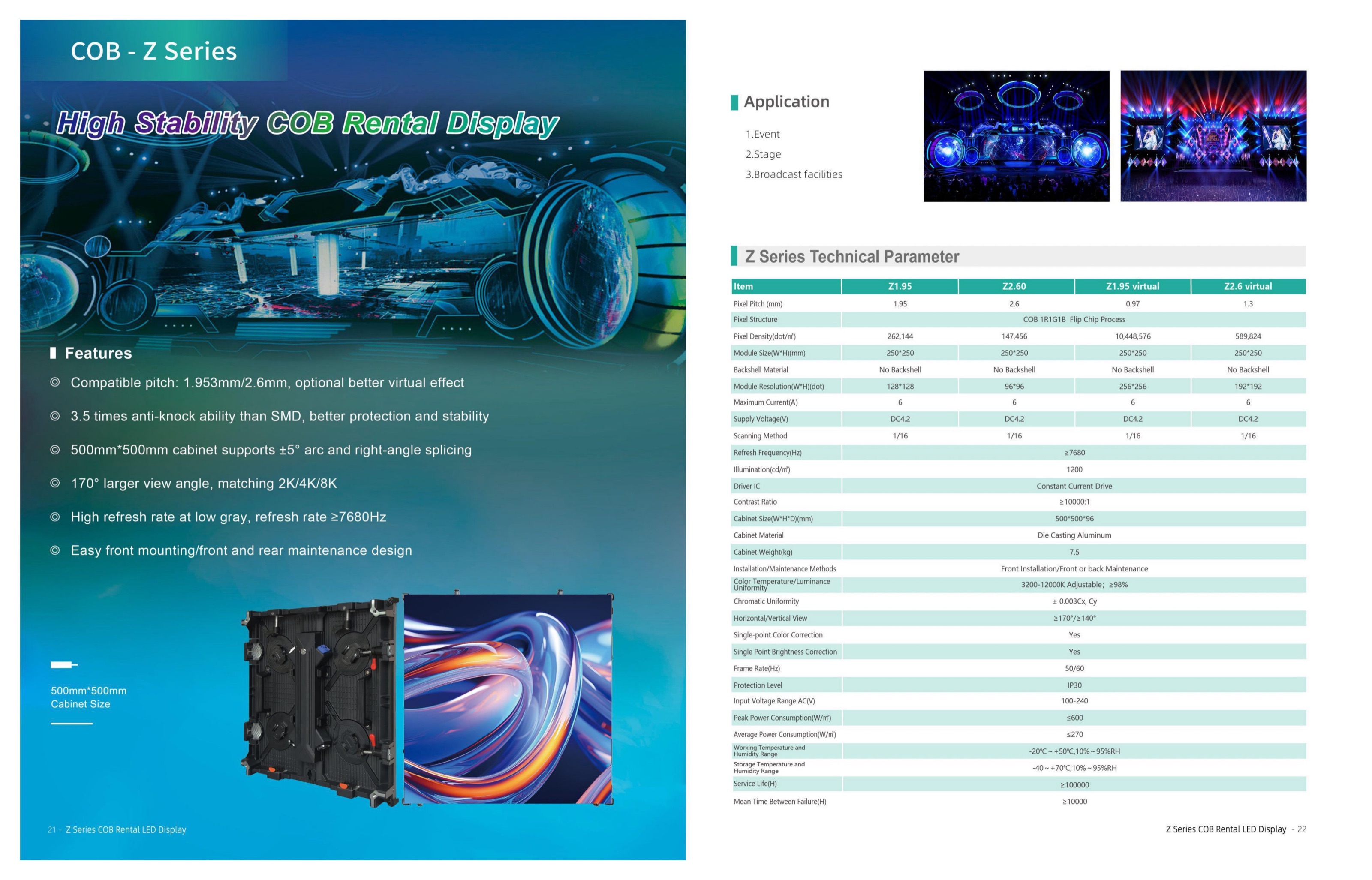

Inquiry / 询价| Pixel Pitch | P1.95 / P2.6 (Virtual: P0.97 / P1.3) |
|---|---|
| Pixel Structure | COB 1R1G1B Flip Chip Process |
| Pixel Density | 262,144 / 147,456 dots/㎡ |

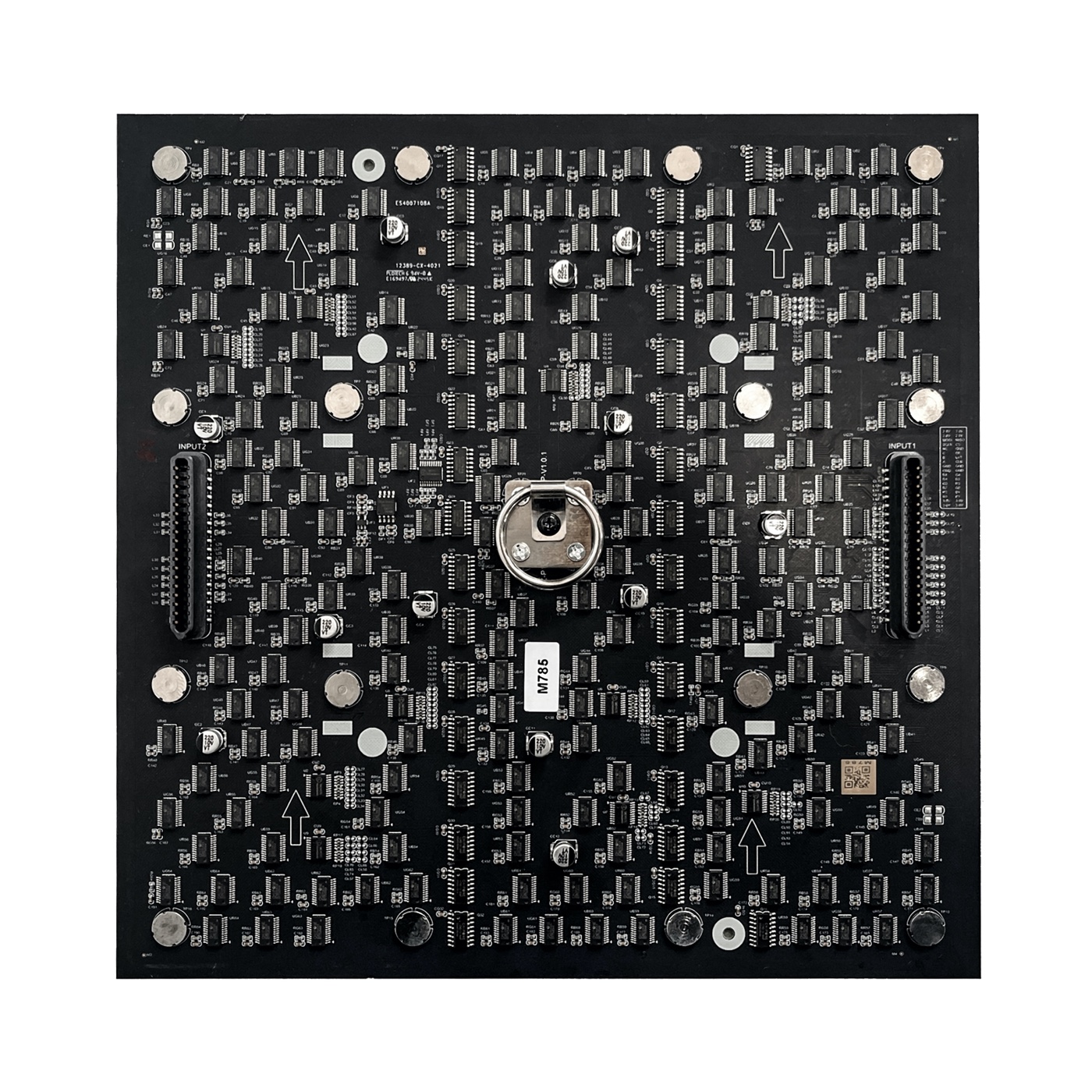

| Module Size (W×H) | 250×250mm |
| Cabinet Size | 500×500mm (supports ±5° arc & right-angle) |
| Backshell | No Backshell |
| Scanning Method | 1/16 |
| Refresh Rate | ≥7680Hz |
| Brightness | 1200 cd/㎡ |
| Supply Voltage | DC 4.2V |
| Max Current | 6A |
3.5× anti-knock ability compared to SMD — flip-chip COB process delivers exceptional durability for rental and staging environments.

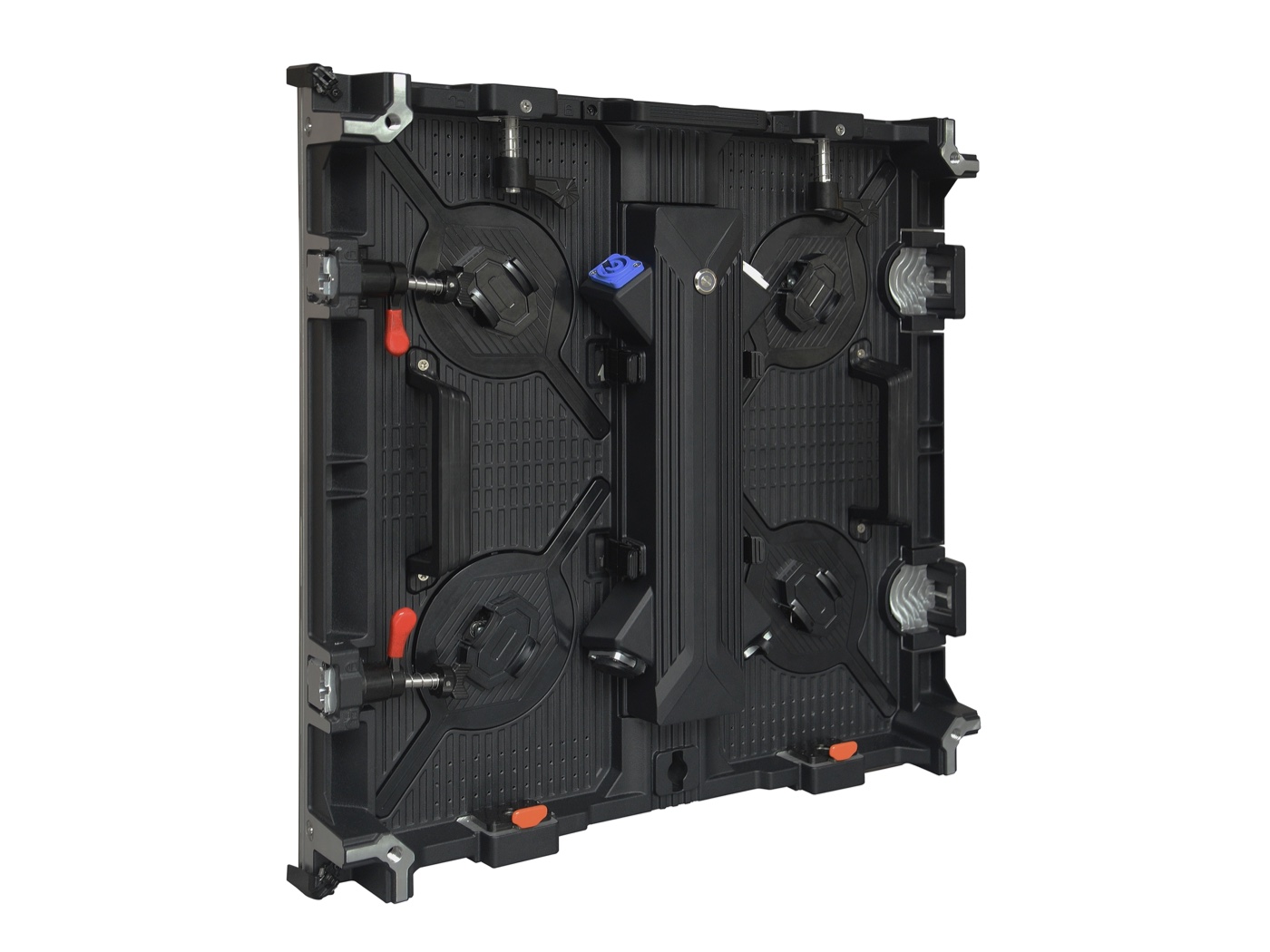

500×500mm cabinet supports ±5° curved and right-angle splicing — creative stage designs without limitation.
≥7680Hz refresh rate with optional virtual pixel technology — P0.97/P1.3 effective resolution for stunning close-range visuals at events.
