Premium COB Outdoor Fine Pitch · IP65 · 3500cd
Premium COB Outdoor Fine Pitch · IP65 · 3500cd
COB EH-PRO Series is the premium outdoor COB fine pitch LED display. 3500cd/㎡ brightness with IP65 protection. Die-cast aluminum cabinet (500×500×90mm) with quick installation. 4.5× robustness compared to SMD technology. Ideal for stage events, shopping malls, retail, and transportation hubs.
Inquiry / 询价| Pixel Pitch | P1.5625 / P1.953 |
|---|---|
| Pixel Structure | COB 1R1G1B |
| Pixel Density | 409,600 / 262,144 dots/㎡ |

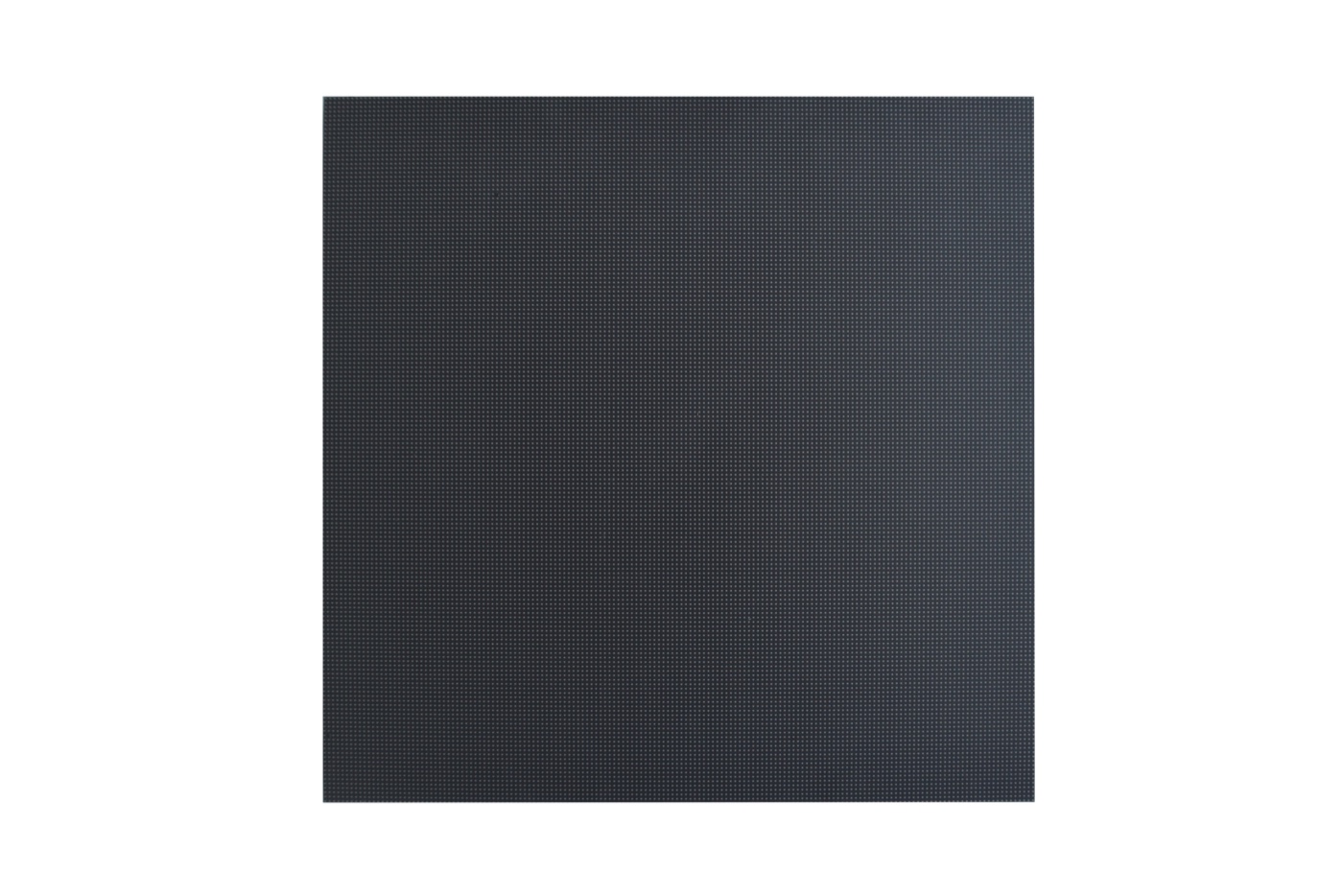

| Module Size (W×H) | 250×250mm |

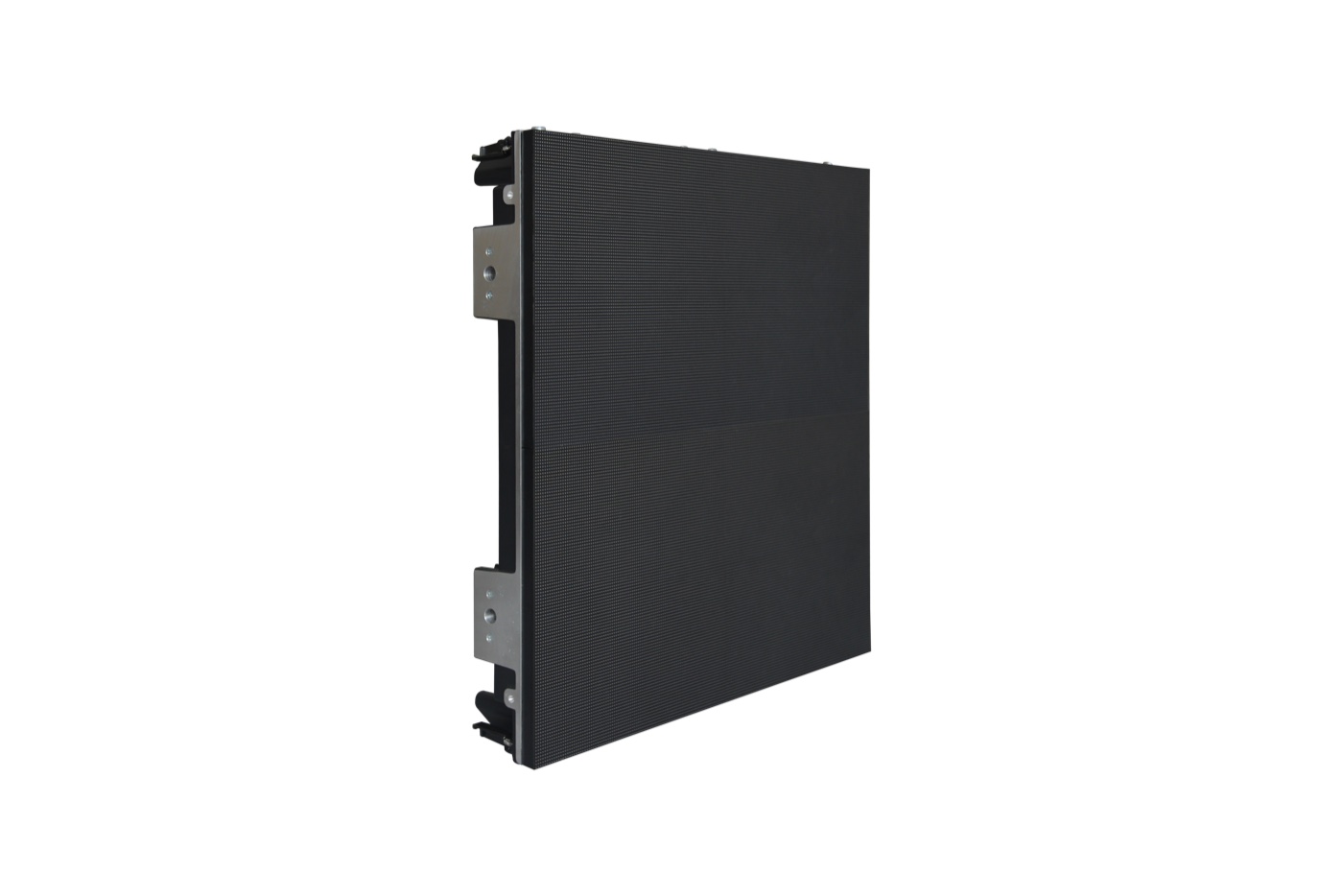

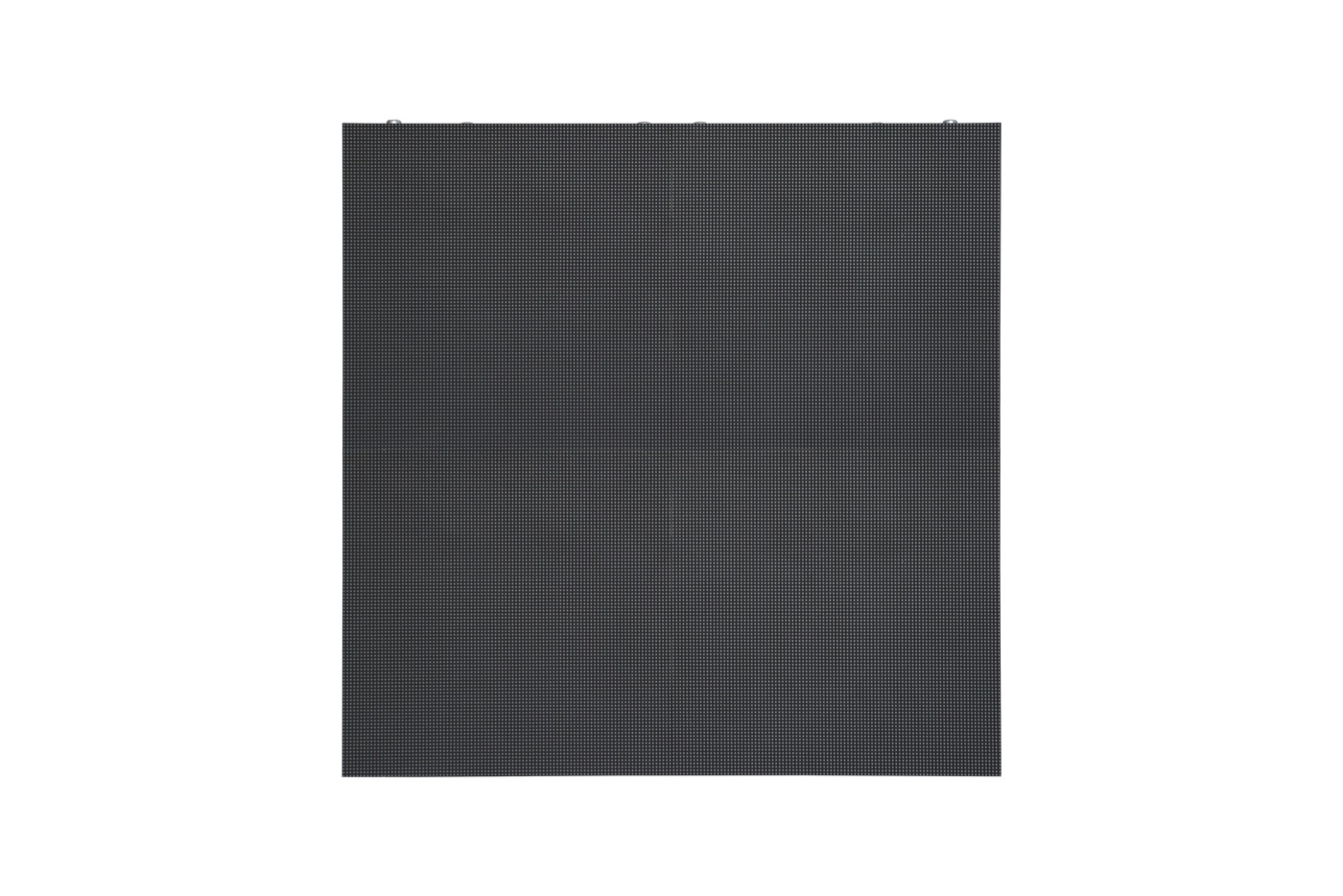

| Cabinet Size (W×H×D) | 500×500×90mm |
| Cabinet Material | Die Casting Aluminum |
| Scanning Method | 1/20 / 1/16 |
| Refresh Rate | ≥3840Hz |
| Brightness | 3500 cd/㎡ |
| Contrast Ratio | ≥10000:1 |
| Protection | IP65 |
| Supply Voltage | DC 3.2/4.2V |
4.5× robustness compared to SMD technology — COB encapsulation provides superior impact, moisture, and ESD resistance for demanding outdoor environments.
Full IP65 protection rating — high brightness 3500cd/㎡ with ≥10000:1 contrast ratio ensures stunning image quality in any weather condition.

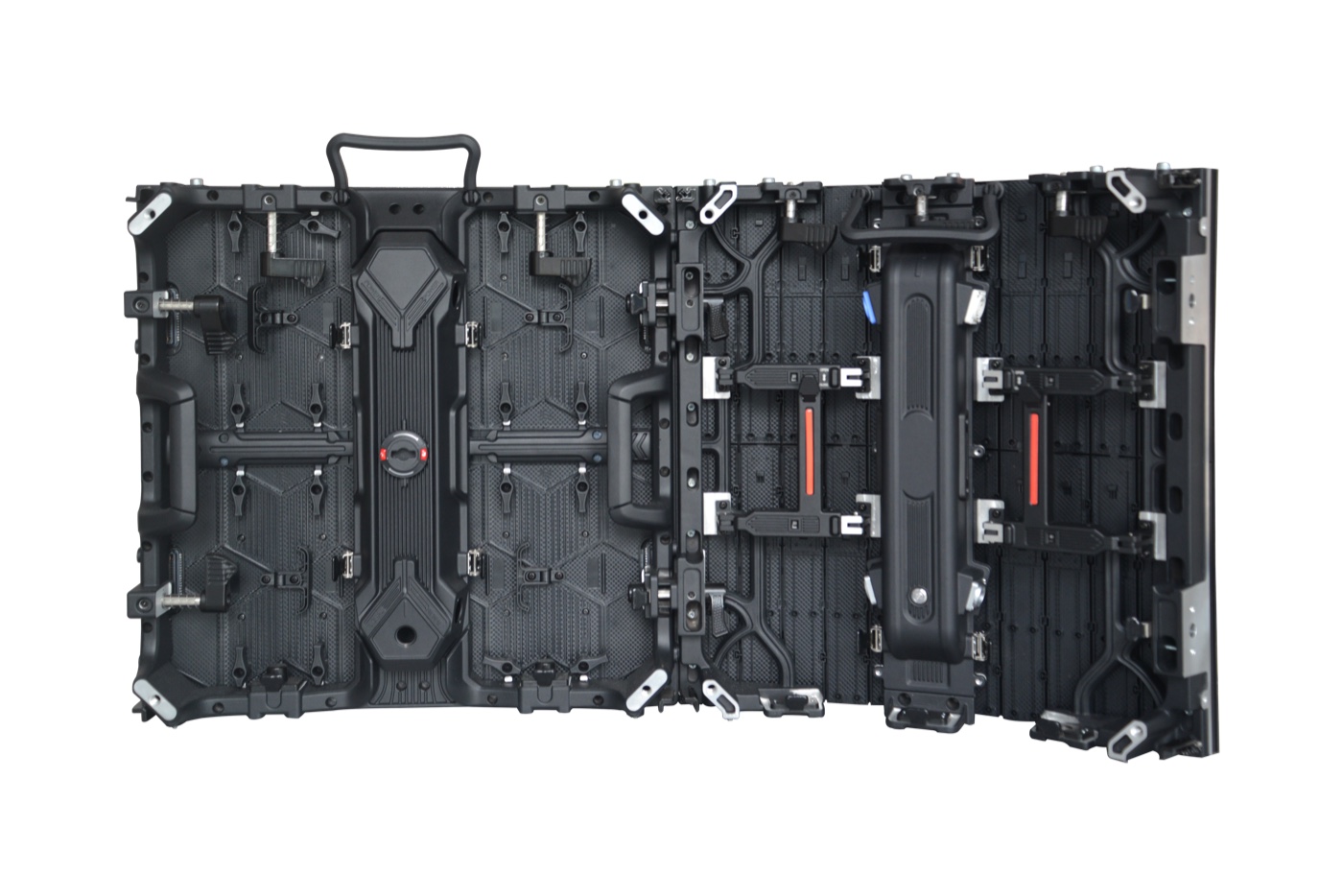

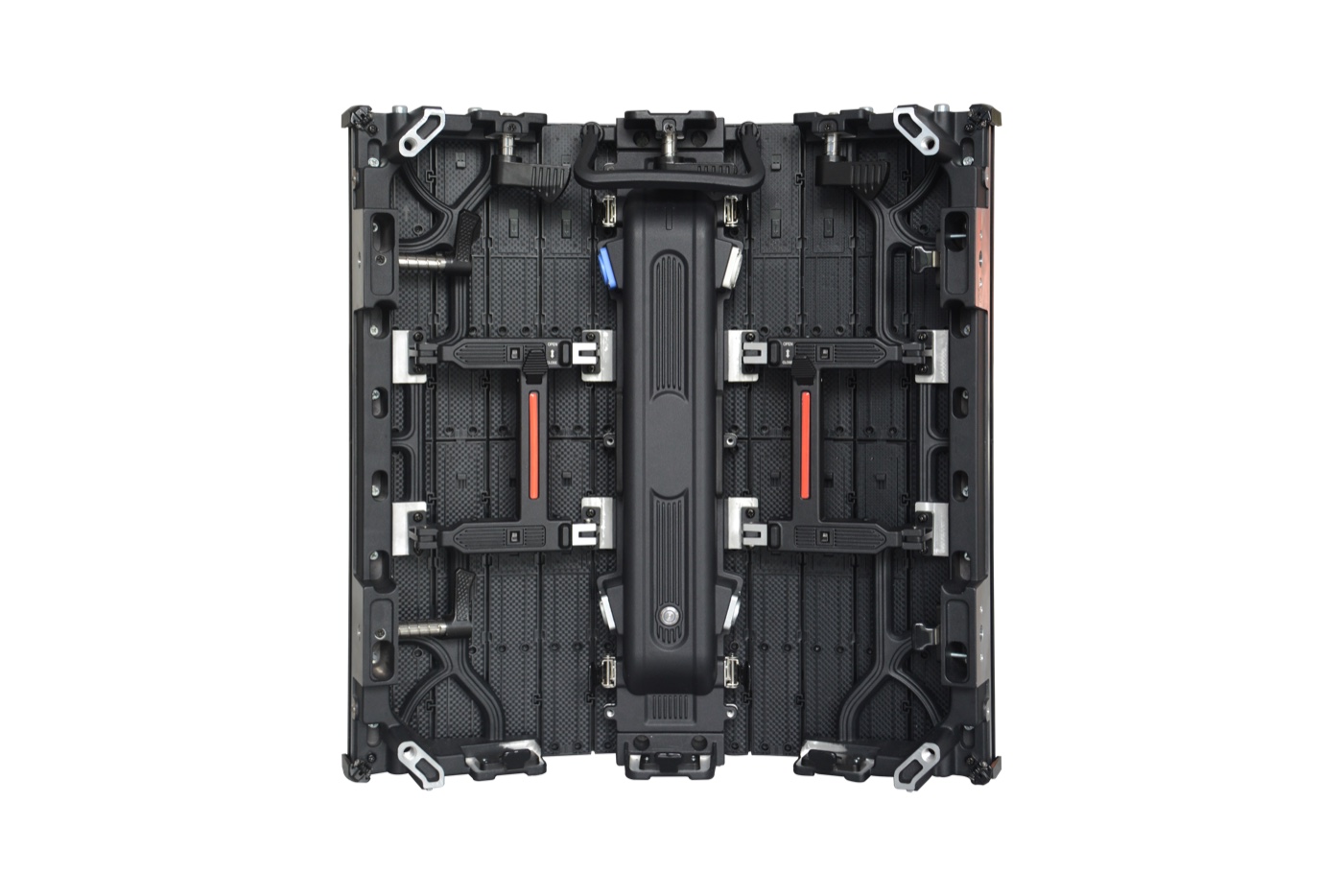

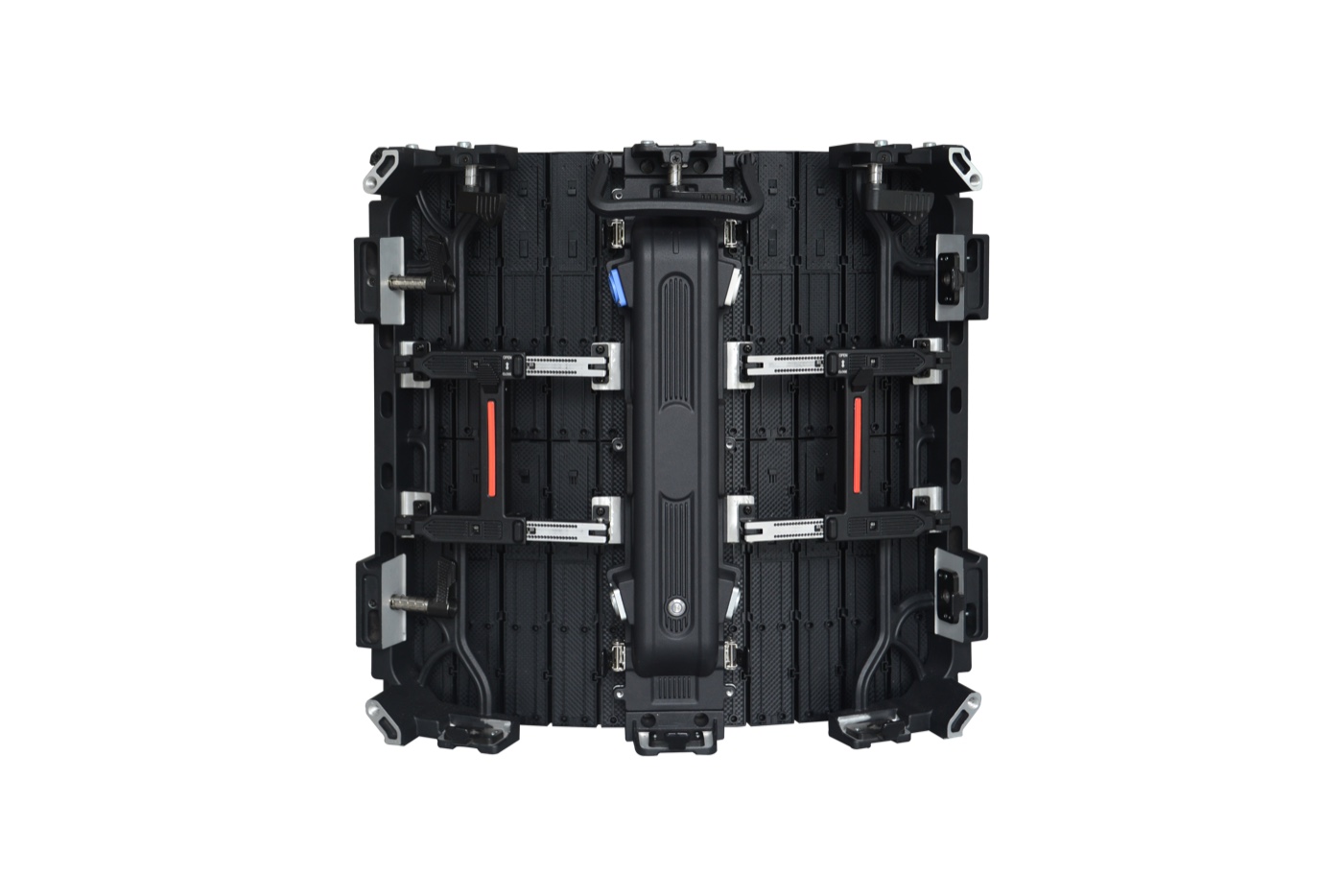

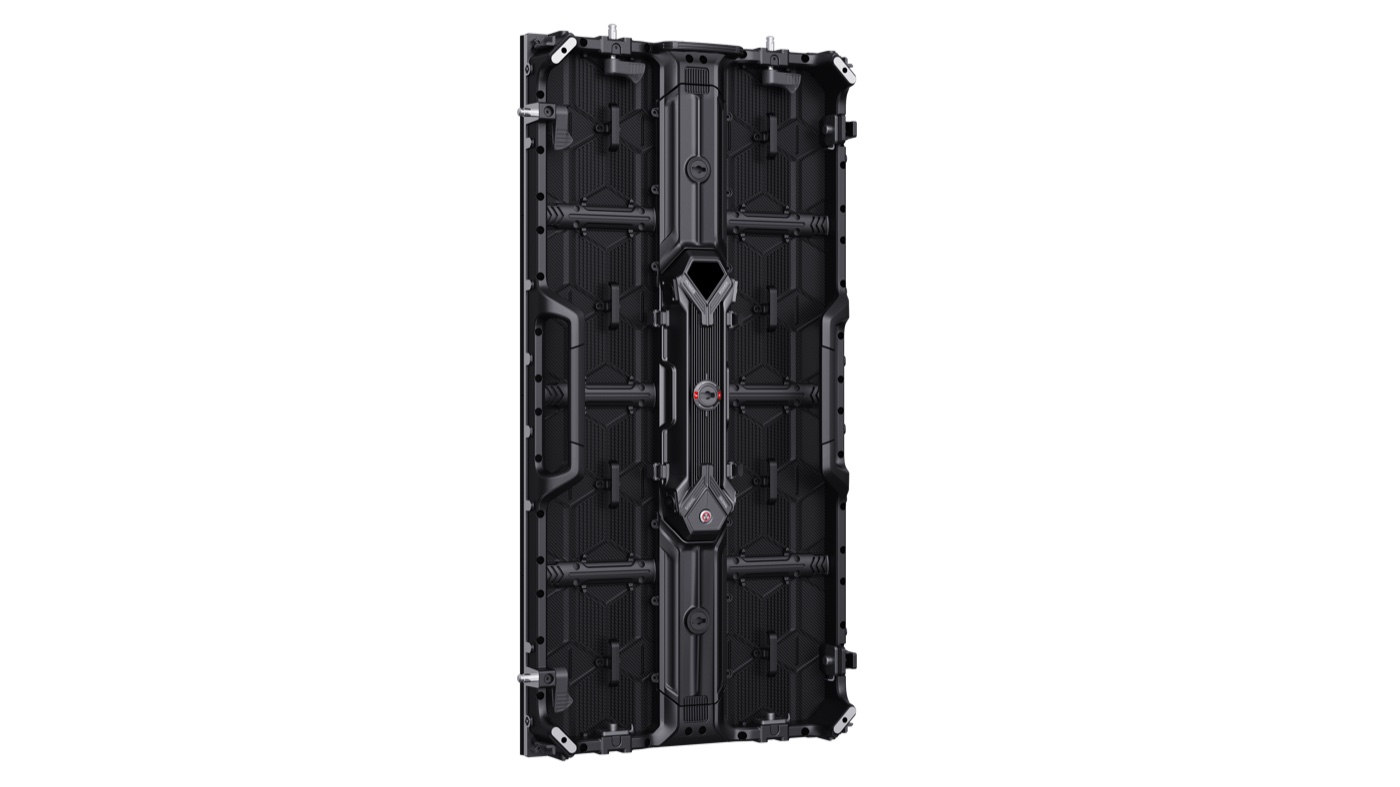

General die-cast aluminum cabinet with quick installation design — compatible with standard rigging and truss systems for efficient deployment.
